Okeler

AK003265

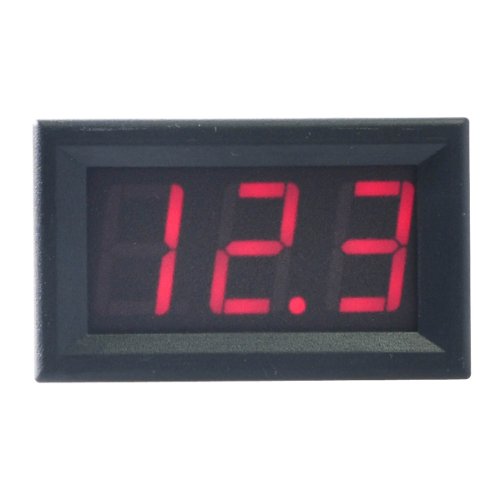

Okeler New 2 Wire Red DC 7-120V Mini LED Panel Digital Display Voltage Meter Voltmeter with Free Pen

EAN: 0887378142842

UPC: 887378142842

Batteries

The minimum Operating voltage: + 7 V
Maximum working voltage: +120 V
Operating temperature: -10 to +65
Operating Humidity: 10 to 80% (non-condensing)
Working pressure: 80 - 106kPa

Display DC voltage red LED display automatically, can be clear at a glance.
It is widely used in equipment and electromechanical device.
Cars, boat, planes etc. for measuring current, voltage.
Monitoring PC & electrical system.
It's small size and easy installation.
This panel is a non-oem, generic product.
All trademarks and copyrights are the property of their respective owners.
Accessory, only products listed are included.
This product is 100% brand new.

Features:
This instrument test voltage, power supply is taken from the test loop. No additional power supply.
The the instrument test voltage supply range: DC7 - 120V, The reverse does not burn.
Note: The maximum input voltage can not exceed 120V, otherwise there is the danger of burned
The instrument is equipped with two wiring. Convenient access to car/ battery car/ motorcycle car line, Used to monitor the battery voltage, Grasp the battery voltage state, can also be used for other products, the use of Voltage measurement.

Wiring Method:
Black lines: public test end
Red line: measuring the positive voltage input terminal

Technical parameters
Supply voltage: 7 - 120V (wide range)
Test voltage: 7 - 120V
Minimum resolution: 0.1V
Test current range: 10A (requires an external shunt). Not include.
Operating Current: <30mA
Display: 0.56" LED
Color: Red
Dimensions: 48 x 29 x 22 mm
Mounting cutout: 45.5 x 25.5 mm
Measurement rate: 200mS/ times
Measurement accuracy: 3%
