Okeler

AK003264

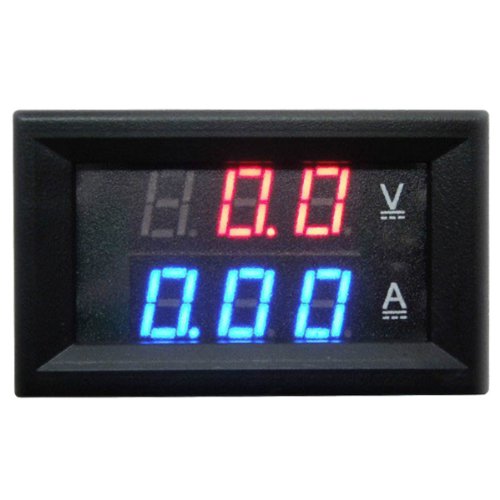

Okeler DC 4.5-30V 10A Red Blue Led Dual Panel Digital Voltage Amp Combo Meter Ammeter with Free Pen

EAN: 0887378142835

UPC: 887378142835

Batteries

The minimum Operating voltage: +4.5 V
Maximum working voltage: +30 V
Operating temperature: -10 to +65
Operating Humidity: 10 to 80% (non-condensing)
Working pressure: 80 ~ 106kPa

Display DC voltage (Red LED display) and DC current (Blue LED display) automatically, can be clear at a glance.
It is widely used in equipment and electromechanical device.
Cars, boat, planes etc. for measuring current, voltage.
Monitoring PC & electrical system.
It's small size and easy installation.
This panel is a non-oem, generic product.
All trademarks and copyrights are the property of their respective owners.
Accessory, only products listed are included.
This product is 100% brand new.

Features:
The small size of the two-color dual instrument. Voltage and current can be displayed on the same screen at the same time.
This instrument test voltage, current, power supply is taken from the test loop. No additional power supply.
The the instrument test voltage supply range: DC4.5 - 30V,The reverse does not burn.
Note: The maximum input voltage can not exceed 30V, otherwise there is the danger of burned
The instrument is equipped with five wiring. Convenient access to car/ battery car/ motorcycle car line, Used to monitor the battery voltage, Grasp the battery voltage state, can also be used for other products, the use of Voltage/ current measurement.

Technical parameters:
Supply voltage: 4.5 30V (wide range)
Test voltage: 0 - 100V
Minimum resolution: 0.1V
Test current range: 10A (requires an external shunt).
