Drive Chain Midi Moto 8mm T8F 70 Links

EAN: 5055583002946

Master Links

This is a standard 8mm mini midi moto drive chain. It has 70 links and 140 rivets, 8mm pitch and a split or break link
8mm or T8F as it is also known as is the normal size for most mini moto dirtbikes, motards and petrolscooters
This chain fits some mini quads. Fits some choppers, Harleys, Desert Storms, Kids buggies. Use the diagram & check your dimensions

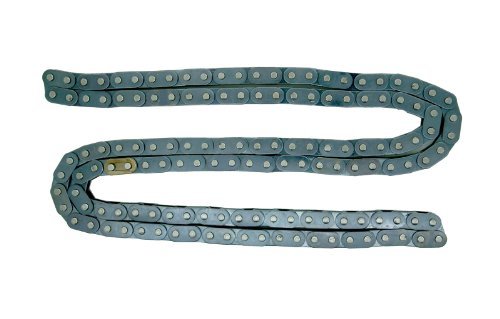

The chain pictured is to demonstrate the style and colour of the one you will receive, it may show more or less links than advertised
To work out what size chain you need, count the rivets and then halve the total to get the number of links. A Petrolscooter branded part

Pitch (Centre of Pin to Centre of Pin): 8 mm / 0.31 inches, Overall Width: 12 mm / 0.47 inches, Roller Seat Width: 4 mm / 0.16 inches, Outer Circumference (When Viewed as a Circle): 1120 mm / 44.09 inches, Number of Links: 70. Viewed as a circle, it measures 112cm round the outside. The widest point measures 12mm (see pin length on diagram image). Dimensions • Pitch: 8 mm (0.3 inches) • Width (pin length): 12 mm (0.47 inches) • Circumference (closed chain length): 1120 mm (44.1 inches) • Roller seat width: 4 mm (0.15 inches)
