Aborn

TC-WEH7016C

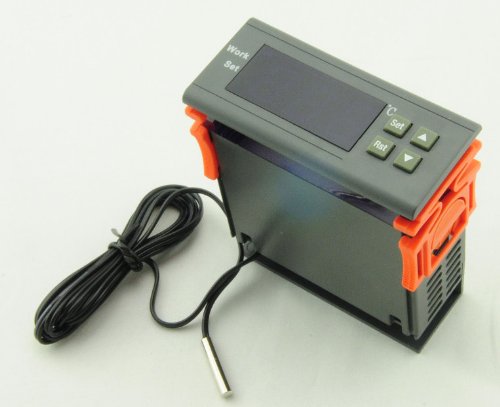

Aborn New LCD Thermostat Control Relay Temperature Controller Temp w/ Sensor 110V °C

EAN: 0694167843237

UPC: 694167843237

Automatic Temperature Control

There is 1 relays on this controller
Refrigeration and heating mode can be set through the menu
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, bolier, steamer, industrial equipments and other temperature-controlled systems.
Net Weight:200g
Data Retention:Yes

This Temperature Contrller is an excellent and convenient multifunction device for controlling temperature

Refrigeration and heating mode can be set through the menu. If you choose Heat mode(Set HC to H). Set Temperature Value to 40°C. Set CP value to 10°C. The relay will be connected when the temperature drop to 30°C(set temperature value-CP value). And the relay will be disconnected when the temperature reaches 40°C.If you choose Cool mode(Set HC to C). Set Temperature Value to 40°C. Set CP value to 10°C. The relay will be connected when the temperature reaches 50°C(set temperature value+CP value). And the relay will be disconnected when the temperature drops to 40°C.
Relay Contact Current(AMPS):5A/AC 220V
Working Temperature: 0°C-50°C
Storage Temperature: -10°C-60°C
Country of Manufacture:China
Accuracy: ±1°C(-50°C -70°C)
Measurement Range:-50°C-110°C(-58°F-230°F
Resolution:0.1°C
Control Temperature Range:-50°C-110°C
Working Voltage:AC 110V
Measurement Error:±0.5°C
Temperature Sensor:NTC25°C=10K B=3435
Power Consumption: ≤3W
Front panel size: 75(L) x 34.5(W)(mm)
Mounting size:70.5(L) x 28.5(mm)
Product size:75(L) x 34.5(W) x 85(D)(mm)
Sensor Cable length: 1 m (include the probe)
Item Included:1 x 110V temperature controller,1 x NTC sensor (1 m cable),1 x English Manual
