Generic

14007845

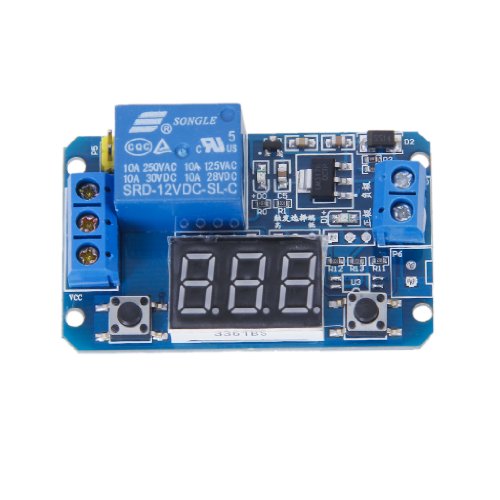

LED Digital Display Adjustable Time Delay Module 12V 100mA 0-999s

EAN: 0766150953640

UPC: 766150953640

Relays

Note : Since the items are not in the same batch. Its design might be a slight different. Please be informed that its function is the same. We will send one at random .
Current: equal to or greater than 100mA
Load 250V 10A AC or DC 30V 10A Power consumption: 0.5W
Delay range: 0-999 seconds
Package Includes:1 x Delay Time Module

Description:

Input Voltage: 12V
Current: equal to or greater than 100mA
Load 250V 10A AC or DC 30V 10A
Power consumption: 0.5W
Delay range: 0-999 seconds
Size: 55.8mmx34mm
Adjustment method:

1. The initial power on, the system defaults to 10 seconds total, 10 second break time.

2. Time set: Left key - LED digital adjust control, circulation increased from 0-9; Right key - LED selection key.

After power on, press the left key, about 3-5 seconds, the third LED starts flashing, you can continue to press the left-or right-button.LED flashing numbers can be changed from 0-9 if press the left key, LED-if press the right key to select, when one is selected, the corresponding flashes.

When the LED corresponding to the 3 digits after the setting is completed, wait about 3-5 seconds, the system will automatically save settings, according to the set value starts to count down after the next startup delay
3. Back to Electricity and starts according to the set value function

Package Includes:

1 x Delay Time Module
