DROK

100136

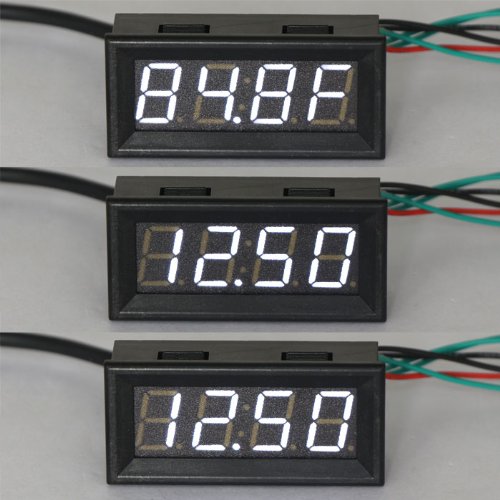

DROK 12 Volt DC Car Digital Electric Clock °F Temperature Voltage Measurement White LED Gauge Panel Meter 18B20 Sensor Probe

EAN: 0519397032438

UPC: 519397032438

Gauges

Feature:Multifunction, Time/Voltage/Temperature,3in1
Power Supply voltage: DC 7-30V ( with anti-reverse protection )
Measuring temperature: 67 F to 257 F
Measuring voltage: Range 0-200VDC , Accuracy +/-0.1V
Clock: 12-hour, the battery backup is available 3-4 years

Specifications:
Feature:Multifunction, Time/Voltage/Temperature,3in1
Display: 61x29x17.5mm
Installation dimensions: 58x26mm
Operating temperature: -40 °c -85 °c
Power Supply voltage: DC 7-30V ( with anti-reverse protection )
Display: Four 0.56 "LED digital tube
Display Color: White
Refresh rate: about 300mS / times
Measuring temperature: -67°F to 257°F
Accuracy: about 0.2 °c
Overload: please do not higher than 300 °F
Sensor Cable Length: 80-100cm
Sensor probe:18B20
Some Application: for Measure Car, Room, Water, Refrigerator, Aquarium Temperature And DIY Etc
Measuring voltage: Range 0-200VDC , Accuracy +/-0.1V
Clock: 12-hour, the battery backup is available 3-4 years

Display modes:
Only display time
Only display the voltage
Only display temperature
Time temperature voltage alternating display

Mode setting button:
Short press to select the clock, seconds, voltage, temperature display mode;
Long press show "ALL", Enter the time temperature voltage alternating display mode，interval of 5 seconds. short press to exit

Time setting button:
Short press to adjust the hours, minutes (flashing),Short press again to exit
Short press the "Mode setting button", the clock starts running

Wiring of voltage measure:
Red: Power Supply +
Black: Power Supply -, Measure Voltage -
Green: Measure Voltage +

Package Includes:
1x Digital Clock Voltmeter Thermometer 3-in-1
