Track Bars QSC PHBxm12-.120C

QSC

PHBxm12-.120C

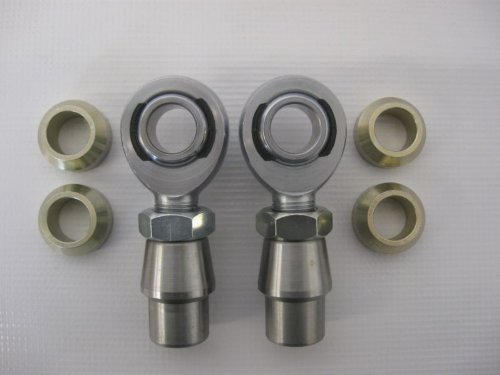

QSC 3/4 X 3/4-16 Chromoly Panhard Bar Kit with Bung .120 & 3/4 Cone , Rod End, Heim Joint

Track Bars


1 Right Hand, 1 Left Hand & 4 Cone
Rod Ends Specs: Body: 4130 Chromoly Steel Heat Treated, Race: Injection Molded Teflon Kevlar, Ball 52100 Bearing Steel Precision Ground Heat Treated, Bore: .750, Ball Width: .875, Thread: 3/4-16, Load Rating: 28.081
Bung Specs: 1045 Mild Steel, Thread: 3/4-16, Fits tube Size: 1-1/4" OD X 1.010 ID X .120 Wall
Jam Nut Specs: Thread: 3/4-16, Width: 1-1/8, Height: 27/64
Cone Spacer Specs: 1045 Mild Steel Zinc Plated, Bore: .750, Width: 1.230, Height: .600, Taper: 60 Deg.

QSC 3/4 X 3/4-16 Chromoly Panhard Bar Kit with Bung .120 & 3/4 Cone , Rod End, Heim Joint
