CP Pistons

S2422-8

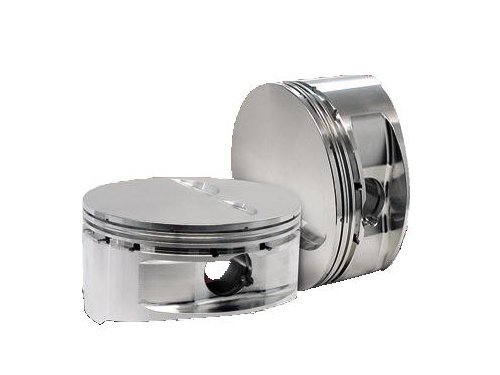

CP Pistons (S2422-8) 13° Piston Set for Small Block Chevy

Forged

Complete Piston Kit
Comp Height: 1.100
CP Quality

Small Block Chevy LS1 Piston Kit SBC LS1 Flat Top & Dish Designed on X-style forging to clear reluctor wheel Fit LS1, LS2 and LS6 heads Designed for shorter wrist pins Pinfitting included at no cost Chamfered pins and wire locks included Accumulator and anti-detonation grooves included Designed for back-cut rings Double pin oilers, force fed from oil ring Pick lock grooves for easy lock removal Custom skirt cam and barrel shapes Supplied with Wire Locks and 9272.250 Pin (106g) CP Piston Kit 13Degree Dome Rail Supports included Supplied with .927 x 2.750 Pins (130g) Supplied With Wire Locks 2nd Ring 1.5 Bore 4.135 Comp Height 1.100 Dome VR CC .175 Dome -2.2cc Gas Ports Yes Oil Ring 3.0 Rod 6.000 Stroke 3.800 Top Ring 1.5 Weight 456 Images used may be generic. Actual product may vary.
