Generic

AC-7003CB-12V+AC-308B-FT+AC-350W

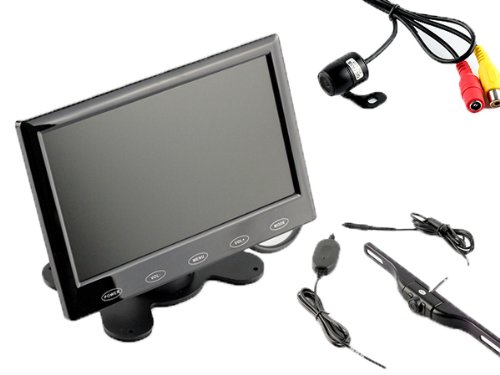

Generic Ultra-Thin 7 Inch HD Monitor with Front View Camera and Wireless Rear Camera

EAN: 0700604546972

UPC: 700604546972

Backup Monitors & Alarms

Wired Front camera and wireless HD Rear View camera
7 inch monitor allows viewing of both cameras (Automatic switch when reversing)
Automatic nightvision for the rear camera
Weatherproof - use in the rain
Wide Angel Lens camera

Introducing the all new reverse camera, which not only comes with a ultra-Thin 7 inch crystal monitor, but also with an excellent wired front and wireless rear camera, showing you anything hidden in your blind spots in front or back of your car.

Manufacturer Specifications

Monitor Specification
- Connections: 2x RCA A/V IN
- Buttons: Menu, System, AUX 1, AUX 2
- Video System: NTSC/PAL (auto switch)
- Display Size: 7.0 inches
- Display Mode: 16:9
- Display Type: Widescreen TFT LCD
- Resolution: 800x480
- Working Power: DC + 12V
- Headrest Dimensions(mm): 176(l)x114(w)x22(h)
- A/V Cable length(cm) 213
-

Front Wire Camera Specifications
- Image Device: CMOS
- Color System: PAL
- Horizontal Definition: 420 TV Line
- Angular Field of View: 170 degree horizontal, 80 degree vertical
- Connection: RCA
- Waterproof rating: IP64
- Recommended Max Range for Objects: 5Meters
- Connection: Wired
- Back Wireless Camera Specifications
- Image Device: HD CMOS (PC3030)
- Angular Field of View: 135 degree horizontal, 80 degree vertical
- Minimum Illumination: 0.1Lux / F1.2 (IR ON)
- Weatherproof: Yes IP65
- Color system: PAL
- Operating temperature: -30 ¡æ~ +80 ¡æ~ / -22 ¡æ~ +176 ¡æ
- Camera Dimensions: 260mm*42mm*31mm
- Total Pixels: 628¡Á582(PAL)
- Night Vision Range: 3M
- Horizontal Resolution: 380 TV Lines
- Power Supply: DC12V
- Connection: RCA to Wireless Connector

Package Contents
- 7 inch Monitor(3m tape at the bottom)
- Front View Camera
- Rearview Camera
- Wireless Transmitter
- Front View Camera Power Cable
- Display Power Cable
- AV Cable
- Mounting Screws
- Free Travel Adapter (for UK, AU, NA, SA customers)
-
