ProSeries/Tow-Ready/Draw-Tite

51063-118359-40443-63817

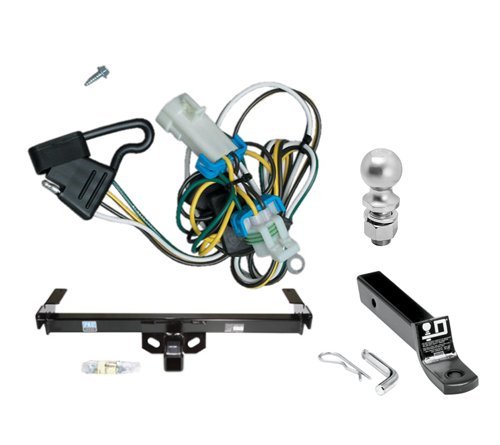

Class 3 Trailer Hitch Receiver Tow Kit w/ 1-7/8 Ball & Wiring for S-10 / S-15

Receivers

51063 Pro Series Class 3 Hitch with 2" square receiver tube. Draw Tite 40443 2" Packaged Ball Mount, Tow Ready 63817 1-7/8" Ball
118359 Tow Ready T-One Connector Assembly w/ 4-Way Flat Plug & Cap
FITS: 1998-2004 Chevrolet S-10 **Will NOT fit Sportside Box w/Non-Towing Bumper or Standard Box w/Rear Fascia 1998-2004 GMC S-15**will NOT fit Sportside Box w/Non-Towing Bumper or Standard Box w/Rear Fascia 1998-2004 GMC Sonoma **will NOT fit Sportside Box w/Non-Towing Bumper or Standard Box w/Rear Fascia 1998-2000 Isuzu Hombre WITH Step Bumper
Drilling is Required
Hitch Install time: 20 mins Wiring Install time: 5 mins

Weight Carrying Capacity: 3500 lbs. Weight Carrying Tongue Weight: 300 lbs. Weight Distribution: 5000 lbs. Weight Distribution Tongue Weight: 500 lbs. Pro Series hitches are custom built according to make and model year for a perfect fit. They are manufactured by the pros for top towing performance and are fatigue stress tested to ensure strong and resilient design. All Pro Series hitches meet or exceed V-5 & SAE J684 Standards and are inspected for quality and workmanship. The Tow Ready T-One Connectors have solid one-piece construction that give a "factory" appearance. They are weatherproof and constructed with 16-gauge bonded wire. This T-One Connector Assembly draws power directly from the vehicle's battery and uses less than 5mA of the vehicle circuit for sensing. It safe guards itself and the tow vehicle from shorts and mishaps and is designed NOT to send feedback through vehicle circuits. All solid-state components of this connector are in potted encapsulation.
