Synapse Engineering
WG002B.2 (04041 / 17024A)

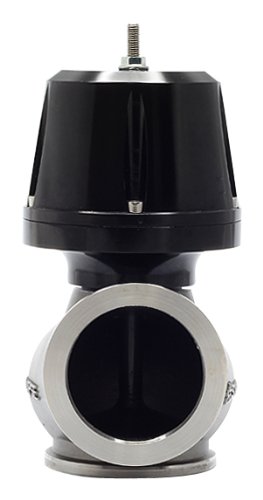

Synapse Synchronic WG 50mm w/ Flanges -Black WG002B.2
EAN: 0858408004638
UPC: 858408004638
Wastegates
Item ID: SYNWG-50-P-BLK
Size (Spec): 50mm Valve
The Synapse Synchronic Wastegate is a fundamentally new concept that incorporates their patented actuator technology to give you more tunability than you thought was possible with a wastegate. You can produce a minimum of six different boost pressures on the same spring, without a boost controller. The Synchronic Wastegate is the ONLY wastegate on the market that eliminates the diaphragm, and gives you the ability to control flow with up to 15 built-in boost settings, ranging from 4 to 25 psi of boost!
Fine tuning the boost level is also available via the preload adjuster. All Synchronic wastegates now come with 2 preload springs and 2 main springs to suit a wider range of boost levels right out of the box. All wastegates also come with 2 different diameter valve seats to combat boost taper/creep, and a high temperature, high pressure sealing ring for installation without having to use gaskets. The one piece valve forged from tooling-grade crucible steel is designed for a low coefficient of thermal expansion. It has also been coated with nitride which has resulted in a significant reduction or elimination of chemical deposition on the valve surface, and a higher surface hardness.
50mm Synchronic Wastegate Features:
- No Diaphragm
- Adjustable Valve Pre-load
- 15 Built-in Boost Settings, Control 4 to 25psi of Boost
- Integrated Exhaust manifold Seal
- Advanced Engineered Materials
- Integrated Flow Control
- Anti-corrosion Anodizing
- 2.5" V-Band Connections
What's in the Box?
- 50mm Wastegate
- 2 Preload Springs
- 2 Main Springs
- 2 Diameter Valve Seats
- High temp, high pressure sealing ring
- V-Band Flanges and Clamps, fits 1.75" OD Tubing (Optional)
