Trail Gear

186115-1-KIT

Trail-Gear Super Metal Knuckle Stud Hardware Kit

EAN: 0300887553294

UPC: 300887553294

Wheel Studs

Designed to fit out one Six Shooter Knuckle. Or use these stronger-than-stock studs for your regular 4-hole Toyota knuckles.
Studs exceed Class 12.9 hardware standards and are much stronger than stock.
1/4" longer than stock to accommodate thick steering arms.
Includes 10 hardened studs, 10 flat washers, 10 nuts, and 6 cone washers. Torque stud nuts to 75-80 ft-lbs.

Stronger and longer than stock Toyota replacement knuckle studs and more affordable than our Magnum Studs these studs will provide great strength without breaking the bank. Each stud is constructed from a proprietary metal made exclusively for Trail Gear. These studs are made to our strict specifications and are significantly stronger than OEM standard (testing exceeded Class 12.9 standards). Trail Gear super metal knuckle studs are .250" (1/4") longer than stock to accommodate all aftermarket steering arms. Like our Magnum Studs, TG super metal studs feature an integrated 8mm hex head for easy removal. These studs should be your first choice for knuckle hardware when repairing or upgrading your high-steer system.

We recommend using Locktight on the lower threads when installing knuckle studs. Studs should be tightened to 40 foot-pounds in the knuckles. Stud nuts should be tightened to 75 - 80 foot-pounds.

Fits 1979-1985 Toyota front solid axle knuckle.

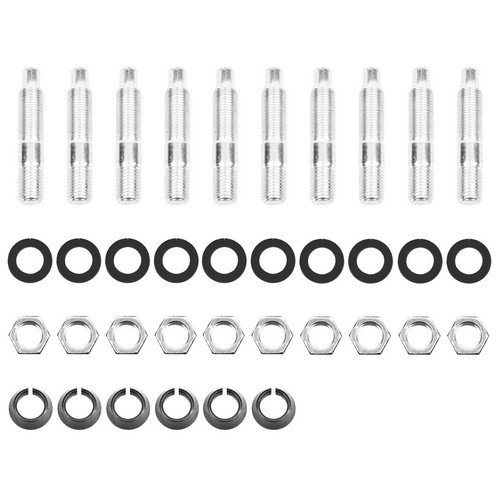

Kit consist of the following:

Knuckle cone washers (QTY: 6)
Knuckle wave washers (QTY: 10)
Knuckle nuts (QTY: 10)
TG Super Metal knuckle studs (QTY: 10)

This is enough hardware to complete one six shooter knuckle.
