JE Pistons

243330

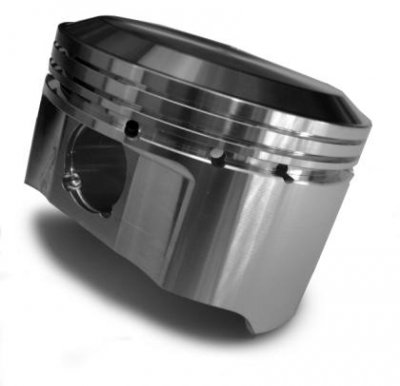

JE Pistons 243330 Domed Piston Set for Big Block Chevy

Pistons

JE Pistons 243330 BBC Domed Piston Set, 4.560 Bore +46cc
Dimension LxWxH : 11x25.3x5.9

For over 60 years JE Pistons has been the industry leader in forged racing pistons for Chevy Ford Mopar and Buick engines. Application Specific Forgings for an Optimized Uniform Crown Thickness Contact Reduction Groove to Minimize Frictional Drag Accumulator Groove for Increased Top Ring Stability and Sealing CNC-Machined Side Relief with Lower Support Band for Additional Skirt Strength Honed Pin Bores Double Pressure Fed Pin Oilers and Wire Locks Included Dome; Gas Ported; Open Chamber; Oil Rail Support is Included; Set of 8 Pistons; Recommended Ring Set: J77008-4560-5 Comp Ratio @ 118cc: 14.6:1 Gram Weight: 574 Rod: 6.535 Bore: 4.56 Dome Volume: 46 Oversize: 0.094 Block Height: 9.78 Comp Height: 1.12 Stroke: 4.25 CID: 555 Comp Ratio @ 110cc: 16:1 Comp Ratio @ 124cc: 13.7:1
