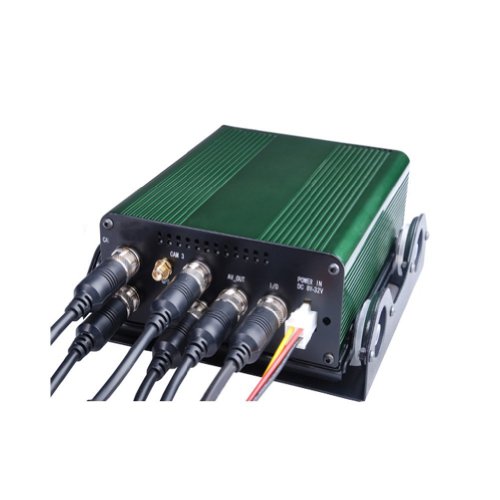

Huacam HCG01 4 channel H.264 vehicle DVR with GPS

HUACAM

Huacam HCG01 4 channel H.264 vehicle DVR with GPS

EAN: 0700220319431

UPC: 700220319431

Car Safety & Security

1. GPS mobile DVR recorder
2. Mobile DVR for TRUCK BUS TAXI
3. H.264 Compresion
4. 4 channel video and audio input
5. Support Max 1TB HDD

Description:
1) 4 channel video and audio recording
2) Built- in GPS module
3) Video format:1D1(75fps) + 3CIF(25fps)
4) Alarm input: 4 alarm input, No alarm below 4V, high level alarm above 4V.
5) Alarm output: 1 alarm output, high level 12V output.
6) Compression: H.264, 25fps D1/s
7) Data Storage:MAX suport 2TB SATA HDD,suport 64GB SD Card.
8) Motion detection / timer switch / alarm recording
9) Dual shockproof
10)Power: DC8-36V
11)Body Weight:0.9Kg.
12)Product Size:162mm x 138mm x 47mm
13)Language: English

Secifications:
System:
Language Chinese/English
OSD: Graphical User interface(OSD menu)
Password: Users Password/ Administrator Password

Vision:
Video input: 4-CH video input 1.0Vp-p,75Î©
Video output: 1-CH video output 1.0Vp-p,75Î©
Preview:Support 1 channel or synchronous 4 channels preview.
Recording Ratio:PAL 25 Frame/s CCIR625 line, 50 field
NTSC 30 Frame/s CCIR525 line, 60 field
Image Compression: H.264 Main profile,

Audio:
Audio input: 4-ch Audio input 600Î©
Audio output: 1-ch Audio output 600Î©
Recording mode: Audio & Video sync.

Image processing & storage:
Video format:4-ch CIF: 25fps,1D1: 25fps + 3CIF: 25fps,
Video stream: ISO14496-10
Video Rate(kbps):
CIF: 1536Kbps ~ 128Kbps,8 levels optional. Highest:1 level
HD1: 2048Kbps ~ 380Kbps,8 levels optional. Highest:1 level
D1: 2048Kbps ~ 400Kbps,8 levels optional. Highest:1 level
Audio Bitrate:4Kbytes/s
Storage: SATA 2.5'' hard drive (support to 1T)and SD card storage(support to 32GB)

Alarm:
Alarm input: 4 switching value
Alarm output:1 alarm output, high level 12V output.

Software:
Analysis of PC playback:Video playback on PC,and analyse the vehicle info in the file.
Upgrade:Support SD cards upgrade.
