Lazer Star

9993021

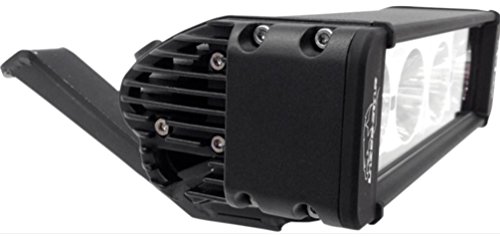

10 Inch 10 Watt Spot 4 LED 9993021 LX ATV Handlebar Kit

EAN: 0818174011063

UPC: 818174011063

Handlebar Accessories

4 inch drop bracket; Discovery 10 watt bar LX1004
IP68 dust and waterproof; submersible to 50 feet
Exclusive 10 watt Cree LED technology
1000 raw lumens per LED; 4 Cree LED
Limited lifetime warranty

Light Dimensions: 2.56"H x 4.1"D x 9.5"W
Bracket Dimensions: 3.5" Center to Center / 4" Drop
Package Weight: 7.5 lbs.
Beam Pattern Degree: 10° Spot
Lumens: 4,000
Total Amp Draw @ 14.2v: 1.85
IP68 Rated
Cree LED
Operating Temp - 104°F ~ +122°F


LX LED ATV handlebar kits are designed for your quad. From the Enterprise 10-watt single row, or the Endeavour 3-watt double row 2x2, up to the Atlantis 32 roof bar, Lazer Star LX LED delivers The Power of Light. LED provides higher efficiency allowing for a stock stator to handle multiple units and provide brighter lighting. Stock charging systems are generally enough to provide more light when utilizing LX LED light bars versus halogen or HID options. The brackets are also available for purchase outside of kit.


4 Inch Drop Bracket; Enterprise 10 Watt Bar PN: LX1004
IP68 Dust And Waterproof; Submersible To 50 feet
10 Watt Cree LED Technology
1000 Raw Lumens Per LED; 4 Cree LED
Limited Lifetime Warranty
Fits Most ATVs; Compatible With Most Stock Stators
9-32 Volts AC/DC Input
Bracket Utilizes Most Handlebar Mounting Bolts

Wire kits are recommended, but not required with all LX LED Light Bar purchases. Wire kits include the proper gauged wire, fused relay, and allow for the lights to be on their own switch. Wire Kits are not included with light bar, but are available separately.
