Bosch

0280750148

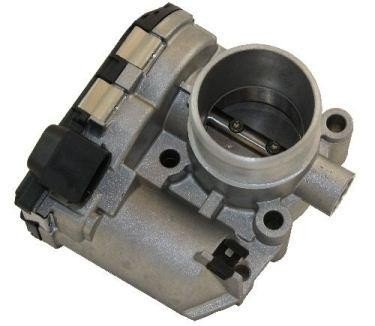

Bosch DV-E5 Electronic Throttle Body (32mm) and Connector Kit

EAN: 3165143553473

Fuel Injection Thermo-Time

Lower consumption
Higher degree of reliability
Cost-favourable
Greater freedom in engine design and application

The electronically controlled throttle-valve device (DV-E) is the central actuator element in the ETC/E-GAS system for gasoline engines. It comprises the throttle valve with electric drive and throttle-valve-angle sensor. Using the position of the accelerator pedal, the engine control unit calculates the required opening of the throttle body, the ignition angle and the quantity of fuel to be injected. A DC motor adjusts the throttle-valve shaft through gearing. The advantages here are: High torque levels, low energy consumption, low weight, and tried-and-tested reliability. The throttle body angle sensor monitors the current position of the throttle body and thus permits the position of the throttle valve to be precisely maintained.
