Auber Instruments

AUBER-104

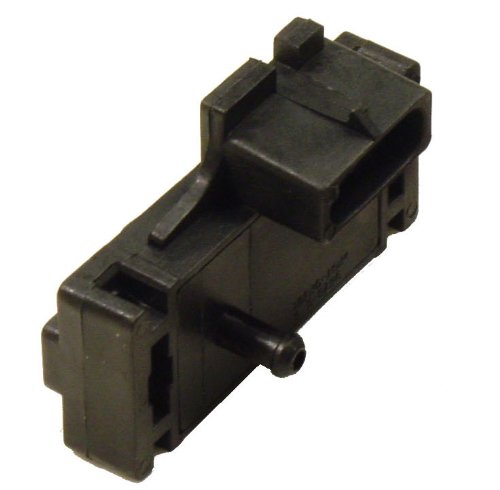

Automobile 4 Bar MAP Sensor Unassembled

MAP

Pressure Range: 0.1 to 4.0 bar (5.8 to 58 PSI) absolute
Supply Voltage: 5.0 0.5 VDC
Output Voltage: 0.62 to 4.81 VDC at 5VDC excitation
Working Temperature: -40 C to +135 C
Barb fitting ID: 0.25 inch

This 4 bar MAP sensor offers a linear output in the 0.1 to 4.0 bar range (absolute pressure unit). When used as a boost pressure sensor, it can measure from -0.9 to 3.0 bar ( -26 inHg vacuum to 43 PSI boost) (relative pressure, or gauge pressure unit). The sensor incorporates the latest MEMS technology and custom Application Specific Integrated Circuit (ASIC) technology. It is specifically designed for tough automotive applications to perform in the harsh underhood environments including extreme temperatures, vibration, thermal and mechanical shock, as well as corrosive chemicals. This sensor comes with an unassembled connector. Users can put their wire directly into the connector instead of splicing their wire to a short pig-tail. It's compatible with our SYL-1812, SYL-1813 gauges.
