Auber Instruments

AUBER-103

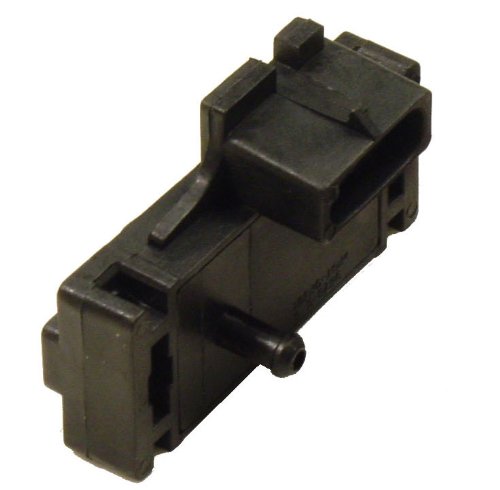

Automobile 3 Bar MAP Sensor Unassembled

MAP

Pressure Range: 0.4 to 3.0 bar (5.8 to 43.5 PSI) absolute
Supply Voltage: 5.0 0.5 VDC
Output Voltage: 0.62 to 4.81 VDC at 5VDC excitation
Working Temperature: -40 C to +135 C
Barb fitting ID: 0.25 inch

This MAP sensor incorporates the latest MEMS technology and custom Application Specific Integrated Circuit (ASIC) technology. It is specifically designed for tough automotive applications to perform in the harsh underhood environments including extreme temperatures, vibration, thermal and mechanical shock, and corrosive chemicals. The output specifications are set to be the same as the ones from GM 12223861 3.0 Bar Sensor to allow more compatibility with boost gauges and controllers on the market. This sensor comes with an unassembled connector. Users can put their wire directly into the connector instead of splicing their wire to a short pig-tail. It's compatible with our SYL-1812, SYL-1813 gauges.
