Viair

K-FBSS-380-425-001

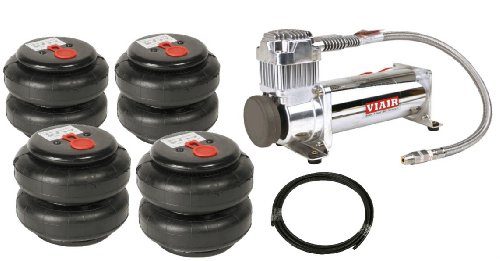

Viair 380C Dual Compressor Package with Air Bags For Air Suspensions

Air Suspension Kits

Single Viair 380C Compressor - 200psi Max Pressure
Duty Cycle: 100% @ 100PSI and 18 amp Max Draw
6" Diameter Air Bag (2500 Air Bag) Lifetime Warranty
1 Year Warranty on Viair Products

BRAND NEW AIR SYSTEM PARTS PACKAGE Parts Package Includes: Four - Standard 2500lbs, Single 1/2"NPT Port Air Bags One - 12 Volt Viair 380C Chrome Compressor One - Remote Air Intake Filter Mounting Kit One - Replacement Air Filter Element One - 1/4" Stainless Steel Braided Leader Hose One - 1/4"NPT Check Valve Viair Compressor Specs: 12-Volt Permanent Magnetic Motor Duty Cycle: 100% @ 100 PSI Max. Working Pressure: 200 PSI Max. Amp Draw: 18 Amps Can Fill A 5 Gallon Airtank From 0-200psi In 13 Min, 25 Sec. Specs of Each Air Bag: 2500lbs Load Capacity Diameter 6", Extended 8", Closed 2.75" Two Top Mounting Holes Measure Approx 1-3/4" from Eye to Eye Bottom has One Mounting Hole in Center All mounting holes are 3/8"-16 UNC
