Viair

K-FBSS-2480-2526-001

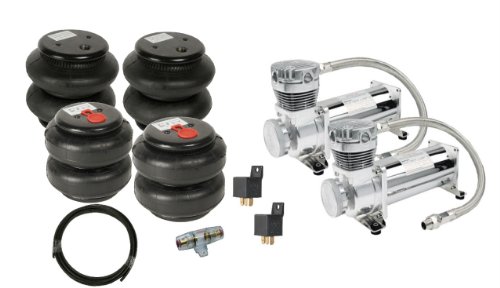

Viair 480C Dual Compressor Package with Air Bags For Air Suspensions

Compressors

Dual Viair 480C Chrome Air Compressor - 200psi Max Pressure
Duty Cycle: 100% @ 100PSI and 40 amp Max Draw
6" Diameter Air Bag (2500 Air Bag) Lifetime Warranty
7" Diameter Air Bag (2600 Air Bag) Lifetime Warranty
1 Year Warranty on Viair Products

BRAND NEW AIR SYSTEM PARTS PACKAGE Parts Package Includes: Two - Standard 2600lbs, Single 1/2"NPT Port Air Bags Two - Standard 2500lbs, Single 1/2"NPT Port Air Bags One - Viair Dual 480C Compressor Pack (Pack Has Two Viair 480C Chrome Compressors) Two - Remote Air Intake Filter Mounting Kit Two - Replacement Air Filter Element One - Heavy Duty Tube Style Fuse holder (up to 60-amp fuse) Two - 3/8" Stainless Steel Braided Leader Hose Two - Heavy Duty 40-amp Relays One - Heavy duty Pressure Switch (165psi On , 200psi Off) Two - 3/8"NPT Check Valve Viair Dual Compressor Specs: 12-Volt 3.53 CFM Permanent Magnetic Motor Duty Cycle: 100% @ 100 PSI Max. Working Pressure: 200 PSI Max. Amp Draw: 40 Amps Can Fill A 5 Gallon Airtank From 0-200psi In 5 Min, 2 Sec. Can Fill A 10.0 Gallon Airtank From 0-200psi in 10 Min, 10 Sec Specs of bag: 2600 LBS Diameter 7.5", Extended Height 9", Closed 2.8" Two Top Mounting Holes Measure Approx. 2-3/4" from Eye to Eye Bottom has One Mounting Hole in Center All Mounting Holes are 3/8"-16UNC Specs of bag: 2500 LBS Diameter 6", Extended 8", Closed 2.75" Two Top Mounting Holes Measure Approx 1-3/4" from Eye to Eye Bottom has One Mounting Hole in Center All mounting holes are 3/8"-16 UNC Bags are Burst tested to 550psi
