GHH

A172

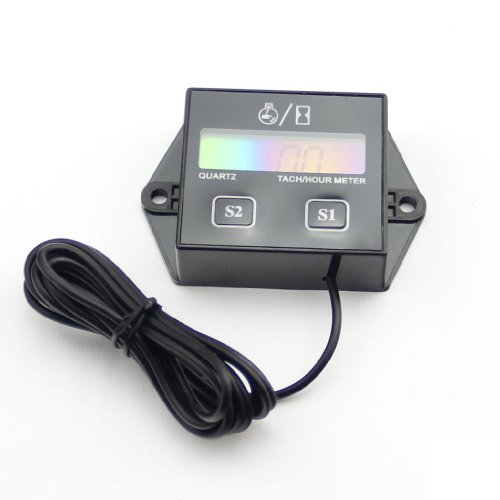

Hour Meter Tachometer Yz 250 Raptor Yfm Wr Wrf Dirt Bik For Motorcycle Atv Sti Scooter

EAN: 6958945025715

Hour Meter

This engine monitor is a self-powered LCD Hour meter, Tachometer and Maintenance meter. An internal lithium battery furnishes the power for the monitor.
Compatible with: Honda, Sukuzi, Yamaha, Kawasaki, Harley, KTM, Ducati, Aprilia, Vespa, Kymco, Piaagio, Agusta, KTM, BMW Motorcycles / Scootors / Dirt Bikes / ATVs (with all 4 stroke or 2 stroke gas engines)
Easy Install: Wrap black wire around sparkplug wire - will work on most engines. Some engines will require hooking up the white ground wire.
This hour meter reads up to 10000 hours and then resets to Zero
The tachometer reads to 25,000 RPM

Overview:
This engine monitor is a self-powered LCD Hour meter, Tachometer and Maintenance meter. An internal lithium battery furnishes the power for the monitor. A wire around the spark plug wire of the engine provides both a techo-meter signal an indicator that the engine is running. The maintenance meter is used to alert maintenance personnel that a time interval has expired and maintenance should be performed on the engine. Before changing any settings to the Engine Monitor, ensure that the engine is off.

Specifications:
Display Large 3/8 inch LCD display
Reading 9999.59 hours/minutes
Reading 25,000 RPM
Accuracy 1 minute or 10 RPM, Quartz
Lead Wires 5 1/2 feet, plenty to work. Includes single shielded wire with two internal leads. One is to be wrapped around a spark plug wire and the other is a ground wire.
Weight 3.2 Ounces
Voltage Supply Self Powered with internal battery rated for 35,000 hour of operation
Temperature Range -4 to 158 Fahrenheit; -20C to 70C
Dimensions Main Body is 1 15/16" wide x 1 3/4" high; Overall width, flange to flange, is 2 7/8" Height is 3/4" from flat surface
Compatible with: Honda, Sukuzi, Yamaha, Kawasaki, Harley, KTM, Ducati, Aprilia, Vespa, Kymco, Piaagio, Agusta, KTM, BMW Motorcycles / Scootors / Dirt Bikes / ATVs (with all 4 stroke or 2 stroke gas engines)
Easy Install: Wrap black wire around sparkplug wire - will work on most engines. Some engines will require hooking up the white ground wire.
This hour meter reads up to 10000 hours and then resets to Zero
The tachometer reads to 25,000 RPM
Programmable Maintenance hour setting with Service Icon, a reminder when to change oil or other service
Works on all spark ignition engines by selecting engine type using S1 and S2 buttons

Package Includes
1 X Hour Meter Tachometer
1 X Instruction
