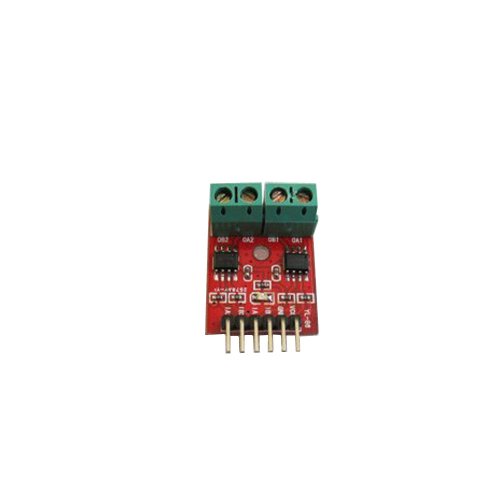

Zhangminivy Arduino 2-channal Motor Drive H-bridge L9110 Stepper Motor Motor Driver Module
EAN: 0543212350629
UPC: 543212350629
Fuses
The one pairs L9110S chip motor drive
module supply voltage :2.5-12V
Suitable motor: motor operating voltage between 2.5v-12V, the maximum operating current of 0.8A, the current market intelligent the trolley voltage and current in this range
Can drive two DC motors, or a 4-wire 2-phase stepper motor
PCB board size: 2.8cm * 2.1cm ultra small volume, suitable for assembly
Zhangminivy Arduino 2-channal motor drive H-bridge L9110 stepper motor motor driver module One module description The one pairs L9110S chip motor drive 2 module supply voltage :2.5-12V Suitable motor: motor operating voltage between 2.5v-12V, the maximum operating current of 0.8A, the current market intelligent the trolley voltage and current in this range Can drive two DC motors, or a 4-wire 2-phase stepper motor. PCB board size: 2.8cm * 2.1cm ultra small volume, suitable for assembly 6 is provided with mounting holes, diameter: 3mm Second module interface specification ãThe 6P black curved pinã 1 VCC external 2.5V-12V voltage 2 GND external GND 3 IA1 external microcontroller IO port 4 IB1 external microcontroller IO port 5 IA2 external microcontroller IO port 6 IB2 external microcontroller IO port [Of 4P Green terminal description] 1 OA1 OB1 connected DC motor 2 pins, no direction 2 OA2 OB2 then two pins DC motor, no direction Three modules for use Switched VCC, GND module power indicator light IA1 input high, IA1 input low OA1 OB1] motor forward; IA1 input low, IA1 input high OA1 OB1] motor reversal; IA2 input high, IA2 input low OA2 OB2ã motor is transferred; IA2 input low input high, IA2 OA2 OB2] motor reversal; Four shipping list As shown motor module *1 (electrostatic with packaging)
