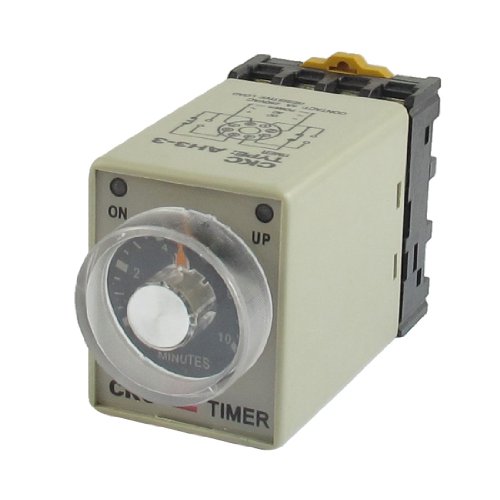

AH3-3 110VAC Power On 0-10Min 10 Minutes Delay Timer Time Relay + Socket

Relay Control Module

Product Name : Time Relay w Base;Type : AH3-3;Rated Voltage : 110VAC
Contact : 5A 250VAC Resistive Load;Time Range : 0-10 Minutes;Number of Terminals : 8
Mount Rail Type : DIN Rail;Mount Hole Diameter : 4mm/ 0.157";Mount Hole Distance : 33mm/ 1.3"(Center to Center)
Total Size (Approx.) : 55 x 40 x 87mm/ 2.2" x 1.6" x 3.4"(L*W*H);Color : As Picture Shown
Net Weight : 184g;Package Content : 1 x Time Relay,1 x Base

• Power on delay, plus timing. With large transparent time setting knob for setting time easily, 8 pin solder terminal for installation. Time Delay Relay used in industrial automation system and mechanical equipment to delay component. Relay is a kind of automatil electric switch, when supply with an input value, like electric, magnetic, light or thermal signal, it wall transfer the controlled circuit automatically and make an abrupt change, when the input value decreased to certain degtee, it will resume to former state and make the controlled circuit back to the former stare. Features LED indicator show power and output status.
