Boesch Built

LEDPB-BLUE

Boesch Built Metal Push Button with Built-in Latching Annular LED- Blue (Qty. 1)

Pushbutton Switches

Qty. 1 BLUE Push button with O-Ring
Ships from Michigan for prompt reliable shipping
Head Diameter- 3/4", Button Diameter- 3/8", Depth Including Contacts- 1.5", Required Hole Size-5/8"
Switch Rating 3A@220VAC 12VDC
Built-in Latch Type BLUE LED Indicator - Great Color ! Check Out our other colors!

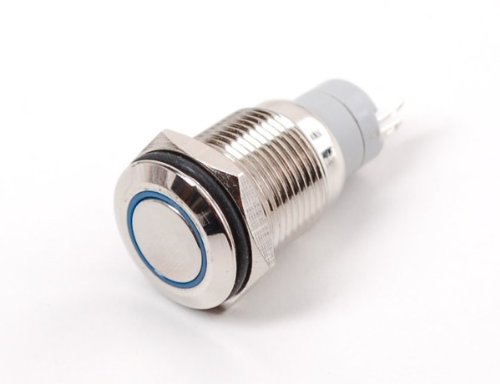

This high quality metal push button has a built-in latch type blue annular LED indicator. To operate the switch simply push the button for desired response. A light push to the button will cause momentary action. A longer push will latch on for blue illumination. A second push to the button will turn it off. Our switch features 3 terminal button actuator microswitch that is rated 3A/220VAC, and is reliability tested to 1,000,000 cycles. The LED input voltage is 20mA/12VDC. The head diameter measures 3/4" (18mm,) the button diameter measures 3/8" (10mm,), and the depth including contacts measures 1.5" (35mm.)The hole size required is 5/8"(16mm.) This listing is for the BLUE LED push button. For additional colors please see out other listings. We have Red, Blue, Green, and white "angel eyes" available for immediate shipping!
