Dynatek

17624

Electronic Advance Ignition Systems and Module for Harley Davidson 1970-1982 Big Twin & Sportster Models

EAN: 0700621236924

UPC: 700621236924

Spark Advance

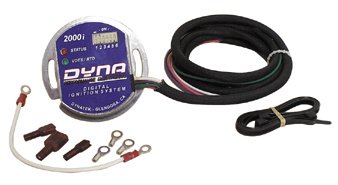

The ignition module is a self contained electronic advance ignition that is microcomputer controlled, with accurate control over the entire ignition process without the need for an external ignition module.
The ignition module can be run in the single or dual fire mode and used with single or dual plug heads when used with the correct OHM coil or combination of coils. For street use 2.8 through 3.5 OHM coils.
Four independent rev limiter choices from 6000 to 7500 RPM. Dramatic, user friendly improvement over the OE ignition.
The kits include ignition module and Dynatek end mount style coils. The six individual switches allow you to tailor fit one of the eight different advance curves to produce a spark knock free ignition, whether you are running the stock displacement or a highly modified high compression Stroker.
A separate Tach output lead is included along with one LED indicator for static timing and one LED to assist in troubleshooting potential problems and the condition of VOES. Custom coil mounts must be used on kits with end mount style coils and can be found in the electric section.

Fitment for Harley: 1970-1999 Big Twin (except fuel-injected models & Twin Cam) / 1971-2003 Sportster (except 1200S) **NOTE: 1970-1982 models require the use of 17523 or 17504 (MID-USA) (Replaces HD# 32402-83) Cam Shaft mounted Ignition Rotor (Cup) and Mounting Bolt 17532 (Replaces HD# 2611B)**
