DPT

DPT-BOITCL+PP-MSPEED6-23L-T10-BK

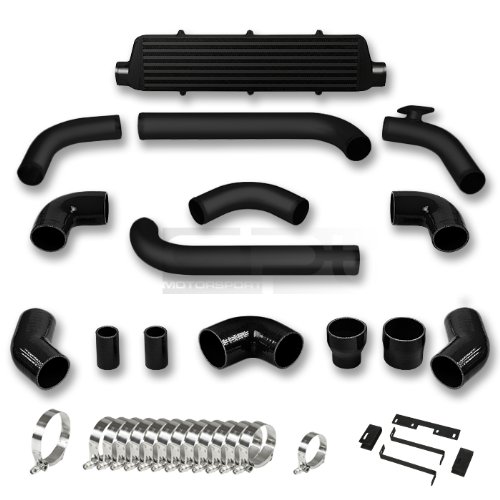

DPT, DPT-BOITCL+PP-MSPEED6-23L-T10-BK, Overall Size 27.25 x 5.5 x 2.5 Bolt On Aluminum Bar and Plate Front Mount Intercooler with Bolt on Black Powder Coated Piping

Intercoolers

100% brand new, Never been tried or installed
Bar&Plate Design; Made with super light weight high quality 6061 Aluminum
Overall size: 27.25" (L) X 5.5"(H) X 2.5" (W) Core size: 21.25" (L) X 5.5"(H) X 2.5" (W)
Inlet/Outlet size: 2.625" Outter / 2.25" Inner
05 / 06 / 07 Mazda Mazdaspeed6 2.3L Turbo DOHC Engine ONLY

Bar and Plate Intercooler functions identically to the Tube and Fin Core, with the exception that, charged air travels through its rectangular shaped passages, which have more surface area; thus, improves cooling effect and power of the charged air. The advantage of this type of intercoolers is that, since the bar and plate core affords up to 35% larger surface area for cooling, a physically smaller intercooler can be used and still retains the cooling efficiency of a larger tube and fin design. This is important for a builder who has a vehicle with a compact opening in the front of it or when there are immovable obstructions present.
