DPT

DPT-BOITCL+PP-EVO8-SL

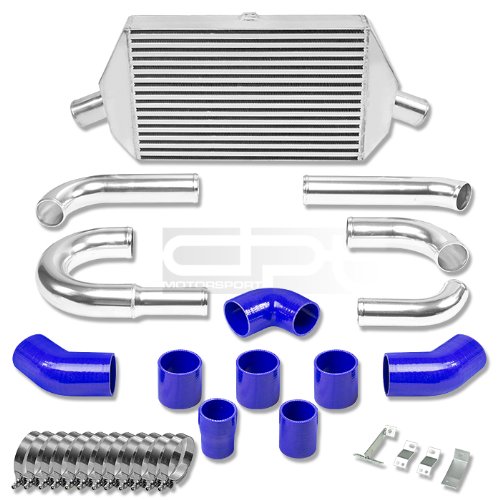

DPT, DPT-BOITCL+PP-EVO8-SL, Overall Size 31.25 x 12.375 x 4.625 Aluminum Bar and Plate Bolt On Front Mount Turbo Intercooler with Bolt on Chrome Piping

Intercoolers

100% brand new, Never been tried or installed
Bar&Plate Design; Made with super light weight high quality 6061 Aluminum
Overall size: 31.25" (L) X 12.375"(H) X 4.625" (W) Core size: 19.75" (L) X 12.375"(H) X 4.625" (W)
Inlet/Outlet size: 2.625" Outter / 2.125" Inner
03 / 04 / 05 / 06 / 07 Mitsubishi Lancer Evolution EVO 8 / 9 VII / IX

Bar and Plate Intercooler functions identically to the Tube and Fin Core, with the exception that, charged air travels through its rectangular shaped passages, which have more surface area; thus, improves cooling effect and power of the charged air. The advantage of this type of intercoolers is that, since the bar and plate core affords up to 35% larger surface area for cooling, a physically smaller intercooler can be used and still retains the cooling efficiency of a larger tube and fin design. This is important for a builder who has a vehicle with a compact opening in the front of it or when there are immovable obstructions present.
