F1 Racing
F1-54307R4-SS
F1 Racing Stage 4 Ceramic Clutch Kit F1-54307R4-SS
SKU: F1-54307R4-SS #12
Complete Clutch Sets
Pressure plate is made from forged ductile iron (stronger than the conventional cast iron pressure plate) to ensure consistent clamping force and extra long life
Virtually indestructible 6-puck solid race discs have a high-capacity center hub for a precise and direct clutch engagement
The 6-puck copper ceramic (also known as 'MIBA') disc features high-coefficient friction pads that are resistant to slippage and burs
Horsepower Rating: 268 HP, Torque Capacity: 247 ft/lbs
Disc OD: 200mm, Spline: 21
F1 Racing Stage 4 clutches are designed for the individual whose goal is to have an ultimate strip/track clutch system. F1 Racing Stage 4 clutches only consist of the very best materials available. The pressure plate is made from forged ductile iron (stronger than the conventional cast iron pressure plate) to ensure consistent clamping force and extra long life. Virtually indestructible 6-puck solid race discs have a high-capacity center hub for a precise and direct clutch engagement. The 6-puck copper ceramic (also known as 'MIBA') disc features high-coefficient friction pads that are resistant to slippage and burst. The F1 Racing pressure plate features a special single diaphragm design to increase clamp load. It features an induction-hardened diaphragm, CNC machined castings, stronger drive straps and rivets. F1 Racing pressure plates provide a smooth and precise feel with easy modulation. All F1 Racing pressure plates are load tested on a special testing tool for quality assurance.

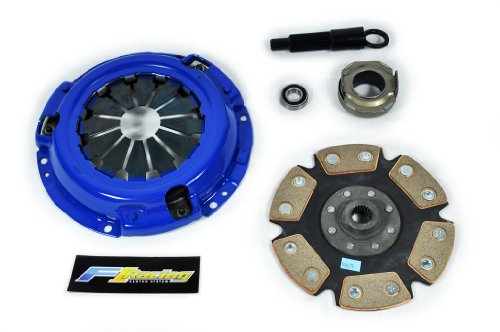

- This complete clutch kit includes:
- F1 Racing Stage 4 Heavy-Duty Pressure Plate
- F1 Racing Stage 4 'MIBA' Copper Ceramic 6-puck Solid Disc (200mm, 21 spline)
- Release Bearing
- Pilot Bearing
- Alignment Tool
- Installation Guide
Vehicle Application
1988 Honda Civic Wagon 4WD (1.6L SOHC 4cyl, 21 spline)SSBC W153-6P Polished Comp R Kit
