Rareelectrical

108046

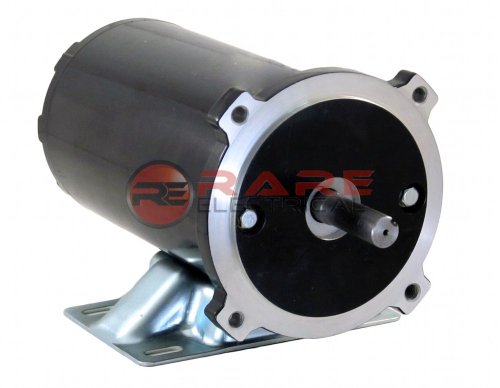

NEW 12V 1/2HP BI-ROTATIONAL 1800 RPM TRACTION DRIVE MOTOR C4D17NK73 C4D17NK7E

Starters

100% NEW and Made with the Highest Quality Components Available
Full One Year Warranty
Computer tested for consistent Quality and unsurpassed reliability
Ships within 24 Hours M-F
Meets or Exceeds Original Specifications

APPLICATIONS:

Applications: Mobile equipment, salt spreaders, pot pullers, winches, floor care equipment, traction drive, and many more

Notes: Very reliable as an repalcement to the Scott, Leeson, Dayton, or Canimex motors found on various mobile equipment, traction drive, floor care applications, and other custom applications.

REPLACES PART NUMBERS:

Canimex: 120Z402H, 120Z402H1, 120Z402H2, W4BB1601

Leeson: 108046, 108047, C4D17NK10B, C4D17NK68, C4D17NK6B, C4D17NK73, C4D17NK7E

Scott Motors: 4BB-01601, 4BB-1601

Rotation: Bi-Rotational
Field Housing O.D.: 4.500 in.
Overall Length: 12.00 in.
Shaft Outside Diameter: 5/8 in.
Shaft Style: Keyway
Terminal 1 Size: 5/16 in. – 24
Terminal 2 Size: 5/16 in. – 24
Housing Finish: Comm End Cover and Drive End Plate is cast aluminum with black powder coat housing.
Weight: 17.6 lbs. / 7.98 kg
