PowerMax

PM3-45-MBA

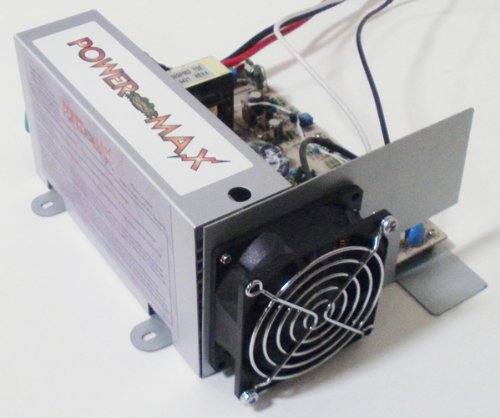

PowerMax PM3-45-MBA Smart Battery Charger Built-In 3 Stage Charging

EAN: 0616983326244

UPC: 616983326244

Batteries & Accessories

Replaces all WFCO-8900
3 stage charger built in standard
Built in smart charger
Reverse battery protection
Electronic current limiting

Variable speed intelligent cooling fan. High and low line voltage protection. Automatic thermal shutdown. UL and CUL approved. DC output voltage (no load) approx. 13.6V/14.4DC. Output voltage tolerance (no load) + or - 0.7%. Output amperage, max continuous 45 amps. Output voltage (full load) approx. >13.4V (DC). Maximum power output, continuous 600 watts. Input voltage range 105-135AC. Input voltage frequency 47-63. Maximum AC Current @ 108V 5 amps. Typical Efficiency >85%. Max inrush current, single cycle 40 amps. Short circuit protection- yes. Overload protection 100%.
