12256B3

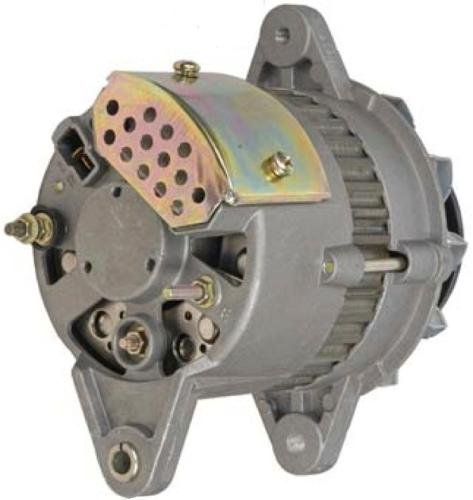

NEW 24V 15A ALTERNATOR FITS KOMATSU LIFT TRUCK FD30V-11 FD40HT FD40HTE RKD15A01

Alternators

100% NEW and Made with the Highest Quality Components Available
Full One Year Warranty
Computer tested for consistent Quality and unsurpassed reliability
Meets or Exceeds Original Specifications

APPLICATIONS:

KOMATSULift Trucks FD23-10 4D95 Engine 1988KOMATSULift Trucks FD25-10 4D95 Engine 1988KOMATSULift Trucks FD25-11 4D95 Engine 1989KOMATSULift Trucks FD25S-11 4D95 Engine 1989KOMATSULift Trucks FD25V-11 4D95 Engine 1989KOMATSULift Trucks FD28-10 4D95 Engine 1988KOMATSULift Trucks FD30-11 4D95 Engine 1988KOMATSULift Trucks FD30H-11 4D95 Engine 1988KOMATSULift Trucks FD30S-11 4D95 Engine 1988KOMATSULift Trucks FD30S-5 4D95 Engine 1988KOMATSULift Trucks FD30SV-11 4D95 Engine 1990KOMATSULift Trucks FD30V-11 4D95 Engine 1990KOMATSULift Trucks FD40DC 6D95 Engine 1986-1994KOMATSULift Trucks FD40HT 6D95 Engine 1986-1994KOMATSULift Trucks FD40HTE 6D105 Engine 1995-1997

REPLACES PART NUMBERS:

KOMATSU F674091
KOMATSU REMAN RKD15A01
NIKKO 0-33000-5510
OEM(s):Komatsu, NikkoVoltage: 24 VoltsAmps: 15 AmpsRegulator Position: 11:00Polarity: NegativeOutput Stud Dimensions: M5-0.80Reg. Location: InternalFan Location: ExternalNew or Remanufactured: NewApproximate Weight: 10.25 lbs / 4.66 kg
