18072A2

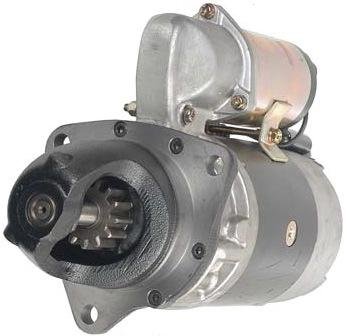

NEW 24V STARTER MOTOR FITS KOMATSU CRAWLER D20 D21 D31 D40 D41 D45 600-813-3660
Starters
100% NEW and Made with the Highest Quality Components Available
Full One Year Warranty
Computer tested for consistent Quality and unsurpassed reliability
Meets or Exceeds Original Specifications
APPLICATIONS:
KOMATSU w/ Nikko System:
COMPRESSORS EC210 85-84 6D110 Engine
GENERATORS EG155 6D110 Engine
EXCAVATORS PC200 85-84 6D105 Engine
EXCAVATORS PC220 85-84 6D105 Engine
COMPRESSORS EC170 85-84 4D105 Engine
COMPRESSORS EC170 85-84 6D105 Engine
COMPRESSORS EC170Z 95-86 4D105 Engine
COMPRESSORS EC170Z 95-86 6D105 Engine
COMPRESSORS EC75 85-84 4D105 Engine
CRAWLERS D20 85-78 4D105 Engine
CRAWLERS D21 85-78 4D105 Engine
CRAWLERS D31 85-81 4D105 Engine
CRAWLERS D40 85-81 4D105-5 Engine
CRAWLERS D40 85-82 6D105-5 Engine
CRAWLERS D41 85-82 4D105-5 Engine
CRAWLERS D41 85-82 6D105-5 Engine
CRAWLERS D45 85-82 4D105-5 Engine
GENERATORS EG100 6D105 Engine
GENERATORS EG100S 6D105 Engine
GENERATORS EG45 4D105 Engine
GENERATORS EG45S 4D105 Engine
GENERATORS EG50 4D105 Engine
GENERATORS EG50S 4D105 Engine
GENERATORS EG55 4D105 Engine
GENERATORS EG55S 4D105 Engine
GENERATORS EG65 84-81 4D105 Engine
GENERATORS EG65 84-81 6D105 Engine
GENERATORS EG65S 84-81 4D105 Engine
GENERATORS EG65S 84-81 6D105 Engine
GENERATORS EG75 84-81 4D105 Engine
GENERATORS EG75 84-81 6D105 Engine
GENERATORS EG75S 84-81 4D105 Engine
GENERATORS EG75S 84-81 6D105 Engine
REPLACES PART NUMBERS:
KOMATSU 600-813-3560, 600-813-3660, 600-813-3661
NIKKO 0-23000-6340, 0-23000-6341, 0-23000-6510, 0-23000-6513
OEM (s):Nikko
Type:PLGR
Voltage:24 Volts
kW:7.5 kW
Rotation:CW
Teeth/Splines:13 Teeth/Splines
Pinion/Splines OD:45.9mm / 1.807in
Mounting Hole 1:13.0mm ID Unthreaded
Mounting Hole 2:13.0mm ID Unthreaded
Mounting Hole 3:13.0mm ID Unthreaded
New or Remanufactured:New
Approximate Weight:38.3 lbs / 17.41 kg
