18100*3

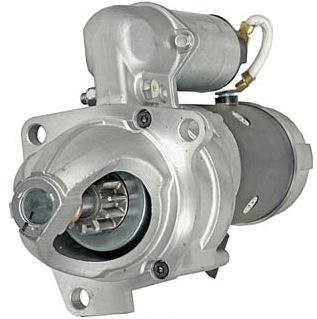

STARTER FITS TCM FORKLIFT FD60Z FD60Z5 FD70Z FD70Z2 FD80Z7 181100-264-1 0230001032

Starters

100% NEW and Made with the Highest Quality Components Available
Full One Year Warranty
Computer tested for consistent Quality and unsurpassed reliability
Meets or Exceeds Original Specifications

APPLICATIONS:

LINK-BELT LS2800 Isuzu 6BD1 Engine Nikko System
LINK-BELT LS3400 Isuzu 6BG1 Engine Nikko System
TCM FD100Z 6BD1 Engine Nikko System
TCM FD35Z 6BB1 Engine Nikko System
TCM FD35Z5 Isuzu D500 Nikko System
TCM FD38Z 6BB1 Engine Nikko System
TCM FD38Z Isuzu D500 Nikko System
TCM FD40Z 6BB1 Engine Nikko System
TCM FD40Z2 Isuzu D500 Nikko System
TCM FD45Z 6BB1 Engine Nikko System
TCM FD50Z 6BB1 Engine Nikko System
TCM FD50Z6 Isuzu D500 Nikko System
TCM FD60Z 6BB1 Engine Nikko System
TCM FD60Z5 Isuzu D500 Nikko System
TCM FD70Z 6BB1 Engine Nikko System
TCM FD70Z2 Isuzu D500 Nikko System
TCM FD80Z7 6BD1 Engine Nikko System
TCM FD100Z 6BD1 Engine Nikko System
TCM FD35Z 6BB1 Engine Nikko System
TCM FD35Z5 Isuzu D500 Nikko System
TCM FD38Z 6BB1 Engine Nikko System
TCM FD38Z Isuzu D500 Nikko System
TCM FD40Z 6BB1 Engine Nikko System
TCM FD40Z2 Isuzu D500 Nikko System
TCM FD45Z 6BB1 Engine Nikko System
TCM FD50Z 6BB1 Engine Nikko System
TCM FD50Z6 Isuzu D500 Nikko System
TCM FD60Z 6BB1 Engine Nikko System
TCM FD60Z5 Isuzu D500 Nikko System
TCM FD70Z 6BB1 Engine Nikko System
TCM FD70Z2 Isuzu D500 Nikko System
TCM FD80Z7 6BD1 Engine Nikko System

REPLACES PART NUMBERS:

ISUZU 1811001910, 1811002531, 1811001890, 1811001891, 5811001742
NIKKO 0-23000-1070, 0-23000-1071, 0-23000-1030, 0-23000-1031, 0-23000-1032, 0-23000-1033
NIKKO SALES 02-23-3000

OEM (s):Isuzu, Nikko

Type:OSGR
Voltage:24 Volts
kW:4.5 kW
Rotation:CW
Teeth/Splines:11 Teeth/Splines
Pinion/Splines OD:39.7mm / 1.563in
Mounting Hole 1:13.1mm ID Unthreaded
Mounting Hole 2:13.1mm ID Unthreaded
Mounting Hole 3:13.1mm ID Unthreaded
New or Remanufactured:New
Approximate Weight:21.4 lbs / 9.73 kg
