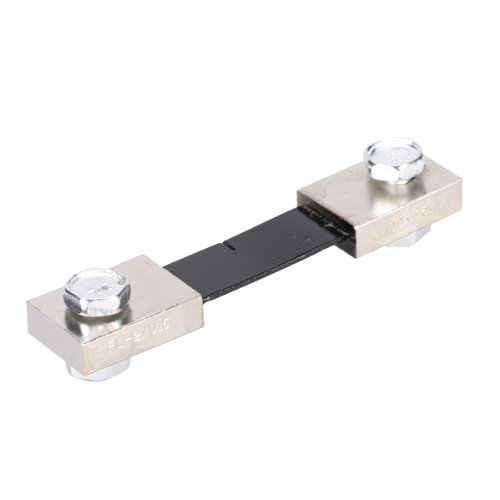

100A 75mV DC Current Shunt for Ammeter

EAN: 0765573809732

UPC: 765573809732

Ammeters

Current: 100A
Voltage Drop: 75mV
Accuracy: Class 0.5
Shock Frequency Endurance: 80-120 times / minute
Overrating Capacity: 120% of rated current

100A 75mV DC current shunt is widely used to multiply the measuring range of ammeter. Accuracy of this current shunt is class 0.5 and the shock frequency endurance is 80 - 120 times / minute. The current shunt measures approx. 4.3 inch long, 0.9 inch wide and 0.9 inch high.

Specifications:

Current: 100A
Voltage Drop: 75mV
Accuracy: Class 0.5
Shock Frequency Endurance: 80-120 times / minute
Overrating Capacity: 120% of rated current
Working Temperature: -40 to +60 deg C
Dimension (L x W x H): Approx. 4.3 x 0.9 x 0.9 inch
Material: Metal

Note: Please take note that we have 2 different kinds in stock. (Please refer to the pictures) We will send one kind at random

Package Included:

1 x Current Shunt
