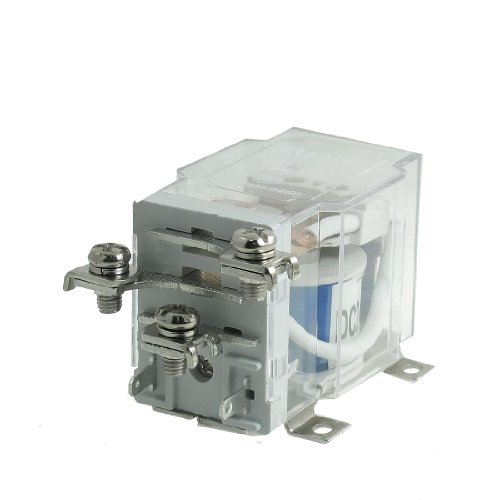

JQX-60F-1Z DC 24V 60A SPDT General Purpose Power Relay 5 Pin

Amico

JQX-60F-1Z DC 24V 60A SPDT General Purpose Power Relay 5 Pin

Accessory Power

Product Name : Power Relay;Model : JQX-60F-1Z;Contact : SPDT
Pin Number : 5;Coil Voltage : DC 24V;Contact : 60A 250V AC / 24V DC
Body Size(not included pin) : 4.5 x 3.9 x 5.9cm / 1.8" x 1.5" x 2.3"(L * W * T);Total Height : 7.2cm / 2.8";Installing Hole Size : 0.5 x 0.35cm / 0.2"x 0.14"(L*W)
Installing Hole Distance(center) : 4 x 3.78cm / 1.6" x 1.49"(L*W);Material : Plastic, Metal;Color : See the Picture
Weight : 170g;Package Content : 1 x Power Relay

Features: 5 pins SPDT, with coil voltage DC 24V, contact capacity AC 60A 250V and DC 60A 24V. JQX-60F-1Z General Purpose Relay can adjust automatically, protect and transform the electric circuit. Widely used in the remote control, communication, automatic control system, electronic equipments, etc.
