SuntekStore Online

SE-13

3 1/2 Digital Red LED DC 200V Volt Voltmeter Panel Meter

EAN: 0721762923870

UPC: 721762923870

Voltmeter

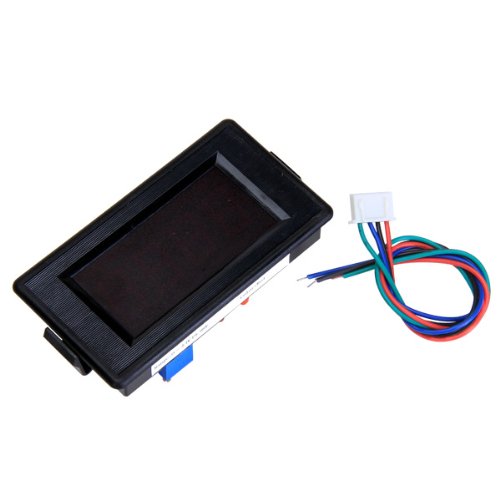

A 3 1/2 LED DC voltage meter
High precision and stable
Polarity reversed protection
Low power consumption
Housing with self-lock tips for panel mounting

Description:

A 3 1/2 LED DC voltmeter
High precision and stable
Polarity reversed protection
Low power consumption
Bright red LED display
Housing with self-lock tips for panel mounting

Specification:

Model: GDD5135A-DC200V-P12V
Power Voltage: DC6-15.5V
Measurement Range: 0 ~ 200V DC
Display Range: 0 ~ ±199.9V
Resolution: ±0.1V
Sampling Time: 2.5 seconds
Operating Temp: 0 ~ 50 deg C
Temp Coefficiency: less than 50PPM
Overrange Indication: 1 is displayed
Running Current: less than 50mA
Display Size: Red 0.56 inch LED
Outline Size (L x W x H): Approx. 3.1 x 1.7 x 0.8 inch / 79 x 43 x 21mm
Screen Size (L x W): Approx. 2 x 0.9 inch / 51 x 24 mm
Housing Material: ABS
LED Color: Red
Housing Color: Black

operating Voltage
 Red: DC +
 Black: DC-
 Voltage range :6-15 .5 V

 Test voltage
Blue: IN-
Green: IN +
Voltage range: 0-200V

Caution: Please be reminded that some of the parts are with high voltage; don't touch the parts of the panel

Package Includes:

1 x LED DC Voltmeter
1 x Connecting cable
