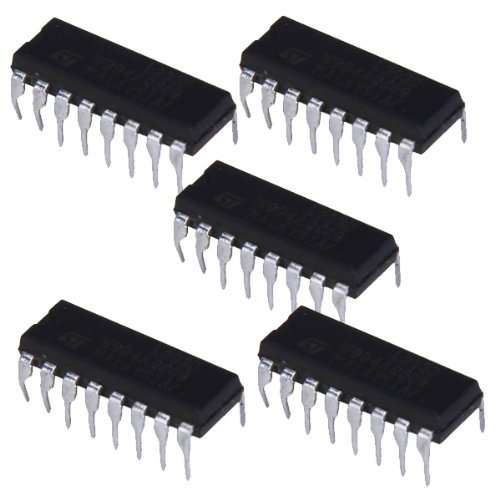

5 x L293D Stepper Motor Driver

EAN: 0721762923702

UPC: 721762923702

Gauge Sets

Channel Capability: 600mA output current / channel
Peak Output Current: 1.2A / Channel (non repetitive)
Enable facility

Features:

Channel Capability: 600mA output current / channel
Peak Output Current: 1.2A / Channel (non repetitive)
Enable facility
Over temperature protection
Logical "0" input voltage up to 1.5V (High noise immunity)
Internal clamp diodes
Pin No: 16 pins
Absolute Maximum Ratings:

Vs Supply voltage: 36 V
Vss Logic Supply Voltage: 36V
Vi Input signals: 7 V
Ven Enable Voltage: 7 V
Io Peak Output Current (100 μs non repetitive): 1.2A
Ptot Total Power Dissipation at Tpins: 90 °C, 4W
Tstg, Tj Storage and Junction Temperature: -40 to 150°C
Package Includes:

5 x L293D Driver Chip
