SuntekStore Online

1.2~225mm Ultrasonic Thickness Gauge Meter

EAN: 0721762917381

UPC: 721762917381

Gauge Sets

Auto Calibration to assure the accuracy
12 sound velocity for different material which also adjustable
Low battery indication
Auto power off mode designed to conserve battery life
More than 10000 times long life keys

Features:

Auto Calibration to assure the accuracy
Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer
Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not
10 thickness measurement storage and recall function available, which facilitated the height work or working in wild area
Sound velocity measurement: with a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table
12 sound velocity for different material which also adjustable
The unit has a special memory that retains all of its setting even when the power is off

Specifications:

LCD Digital Display: 4 digits
Minimum Display Unit: 0.1mm
Working Frequency: 5MHz
MeasurementRange: 1.2~225.0mm (Steel)
Minimum Limit for Tubes Measurement: Φ20 x 3mm (Steel)
Accuracy: ± (1% H + 0.1 mm) (H denotes the measured thickness)
SoundVelocity Range: 1000~9999m/
Measuring Sound Velocity with a given thickness
Measuring Range: 1000~9999m/s
When the given thickness over 20mm, the accuracy is ±1%; when the given thickness less than 20mm, the accuracy is ±5%
Operating Temperature: 0~40°C (32~104°F)
Power supply: 3 x 1.5 AAA Alkaline Batteries (Included)
Operation Current: no more than 50Ma (Normal); no more than 120mA (With Backlight on); no more than 20 µA (Stand-by)
NOTE: Please note that due to transport limitation, we will send one empty bottle (without coupling agent) to you.

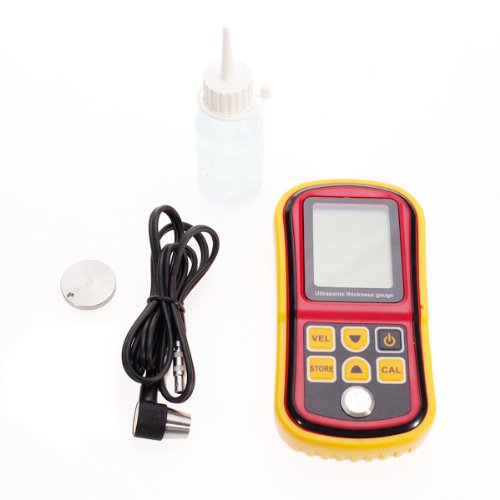

Package Includes:

1 x Ultrasonic Thickness Gauge
1 x Transducer
1 x 4mm Sample Block
1 x Empty Bottle (without Coupling Agent)
1 x Instruction Manual
3 x AAA Batteries
