Clutch Masters

15022-HDKV-A

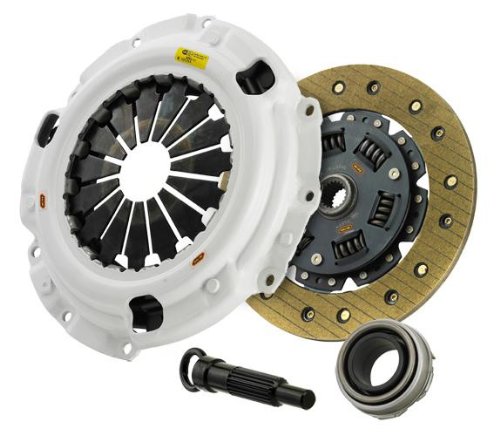

Clutch Masters 07-08 Subaru Legacy GT 2.5L 5Sp 4WD FX200 Clutch Kit w/Aluminum Fly

SKU: 15022-HDKV-A

Complete Clutch Sets

2005 - 2009 Subaru Legacy Outback 4 Cyl 2.5L Turbo 5speed
Old Part # 15-022-HDKV-AL

The FX200 System uses the Power Plus I Pressure Plate and a Steel Backed Kevlar disc. This clutch is designed for the street enthusiast or weekend racer. The FX200 offers similar torque rating and holding capacity as the FX100, however, its life expectancy is increased with the Kevlar disc. Our Kevlar friction material is non-abrasive and doesn't score the mating surfaces. It features only slightly increased pedal pressure, significantly longer life than stock, and normal clutch feel during engagement and disengagement for the smoothest operation of any stage we offer. Minimum 500 Required break in miles. Please see The Technical guide for more details.

Kit includes Aluminum Flywheel

CLUTCH KIT PART# GUIDE: #####-HDTZ-A

Pressure Plate Codes:
SD - Stock pressure plate
DD - Double diaphragm pressure plate
HD - Heavy duty pressure plate
HR - High rev pressure plate
TD - Twin Disc


Disc Codes:
00 - Sprung steel-backed organic disc
B4 - 4-puck rigid ceramic disc.
B5 - 5-puck rigid ceramic disc.
B6 - 6-puck rigid ceramic disc.
BL - Rigid full face ceramic disc.
0C - Sprung Organic/Ceramic disc.
C4 - 4-puck ceramic sprung disc.
C6 - 6-puck ceramic sprung disc.
CL - Sprung full face ceramic disc.
CF - Sprung ceramic/Fiber Tough disc.
CK - Sprung full face Kevlar/ceramic disc.
CT - Sprung segmented Kevlar/ceramic disc.
0F - Sprung Organic/Fiber Tough disc.
FF - Sprung Fiber Tough disc.
I4 - 4-puck rigid iron button disc.
I6 - 4-puck rigid iron button disc.
KV - Sprung full-face Kevlar disc.
SB - Sprung organic disc.
TZ - Sprung segmented Kevlar disc.
7S - 7.25 in. Twin disc (Street)
7R - 7.25 in. Twin disc (Race)
7H - 7.25 in. Twin disc (Race/Street)
8S - 8.50 in. Twin disc (Street)
8R - 8.50 in. Twin disc (Race)
8H - 8.50 in. Twin disc (Race/Street)


Foot Notes:
A - Aluminum flywheel included.
S - Steel f
