Griffin Filters

GP454-2

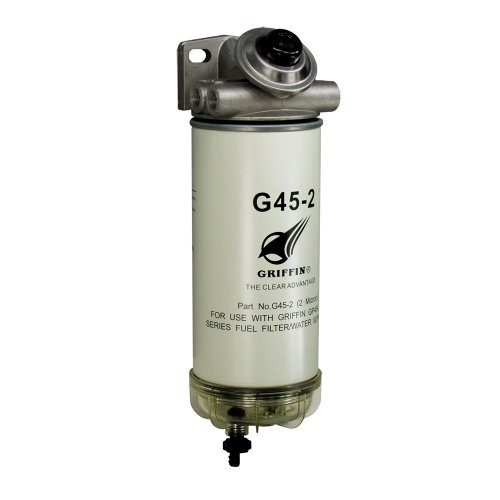

Griffin GP454-2 Spin-On Fuel Filter / Water Separator

Fuel & Water Separators

120 GPH Max Flow Rate
MICROBLOC Element Separates 99.8% Water from Fuel
For Vacuum Side Diesel Fuel Installations Only
Filter Ships with 2 Micron Size Element

Griffin GP454-2 Spin-On Filter / Water Separator. The GP454, with a flow rate of 120 GPH, is a Griffin Spin-On Series filter. The GP454 is 14.57" in height and 4.70" in depth. The GP454 provides unsurpassed fuel filtration and water separation. The GP454 uses genuine MICROBLOC® replacement elements. GP series Spin-On filters feature a head unit with integrated primer pump and bleed screw to assist in priming after a filter change. Select a G series for a unit without the primer pump. GP units come unassembled and complete with primer pump style head, 2 plugs for unused ports, genuine MICROBLOC® G45-2 Micron Spin-On element, clear plastic water bowl and O-ring. Fuel ports are 3/8"-18 NPTF. All Griffin Spin-On Series Fuel Filter / Water Separators come with a one year warranty. Element life is not covered by this warranty and will vary upon your particular conditions and usage. Griffin filtration technology was developed from over 30 years of experience purifying petroleum-contaminated seawater. MICROBLOC® Multi-grade Filtration Media Elements have tested to be 99.8% effective in separating water from diesel and bio-diesel fuels and can remove solid contaminants as small as 2 microns in size. G45 elements are available in 2, 10 and 30 micron sizes. Diesel Filters Direct can also help you find the fittings you need to complete your installation like a pro. Fittings are sold separately.
