Mitsubishi Belt Tension Adjuster Pin Wrench Timing Tool

EAN: 0858347003907

UPC: 858347003907

Belt Tensioner

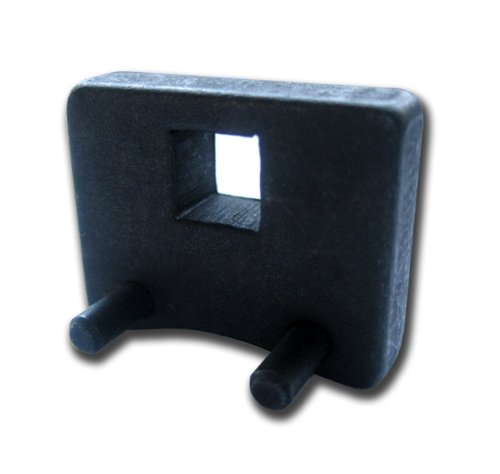

New MD998767 equivalent tool (older part# MD998752) timing belt tool/wrench for Mitsubishi engines.
Two cylinders designed to simply fix the tension pulley, adjustment by the 1/4" wrench.
Used to apply the correct amount of tension (Foot/Inches varies depending on engine) while using a torque wrench to the tensioner pulley, so as to keep the timing belt tensioned properly.
Here is a partial vehicle list for you; all take MD998767/MD998752 and some also take MD998738 tensioning bolt.

Used on almost all Mitsubishi with injection engine 4G63/4G63T 2.0L~4G64/2.4L~ 4G61~4G92~ 4G93~ 6G72-6G73-6G74-6G75 3.0L/3.5L/3.8L MMC engines in Eclipse, Talon, Laser, Galant, Galant VR4, Stealth, 3000GT/VR4, Montero, Diamante, Endeavor, Outlander, Evo. Also used on Hyundai 2.0L Sonata's 92-98; Hyundai part# 09244-28100. 3000GT V6 Carisma/Colt/Lancer 1.8L 16V Galant 16V/V6/Gdi Pajero/Shogun 3.0L/3.2L 24V Sigma 3.0L V6 Space Gear/Space runner/Space wagon 2.4 Gdi Space Wagon 2.0L 16v Proton 416/418 Persona 1.8L/DOHC Hyundai Lantra, Sonata 93'+ 16v 1.6/1.8/2.0 Engine code G4-N,G4-P,G4-R
