Rareelectrical
8237HAA4

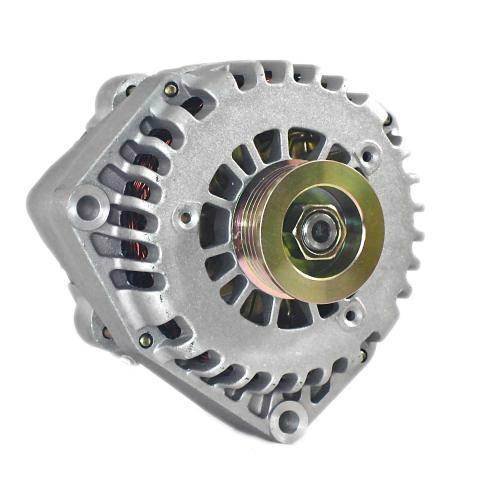

NEW HIGH AMP 250A ALTERNATOR 04 05 CADILLAC ESCALADE 5.3 6.0 10464443 10480390
Alternators
100% NEW and Made with the Highest Quality Components Available
Full One Year Warranty
Computer tested for consistent Quality and unsurpassed reliability
Ships within 24 Hours M-F
Meets or Exceeds Original Specifications
APPLICATIONS:
High Output 250 Amp Alternator
Brand New Alternator Delco AD244 Series
250 Amp, 12 Volt, CW, 6-Groove Pulley
Sold outright with no core charge! This Beefy Alternator is what you need for high amp stereo systems or for extra reserve when you need it.
Output at idle = 125 amps.
Maximum output of 250 amps is achieved at 1200 engine rpm.
For safety, we recommend installing a fused 4 gauge main charging wireBrand New Chevy Truck SUV, GMC, Isuzu, Cadillac
High Output 250 Amp Alternator
Brand New Alternator Delco AD244 Series
250 Amp, 12 Volt, CW, 6-Groove Pulley
Sold outright with no core charge! This Beefy Alternator is what you need for high amp stereo systems or for extra reserve when you need it.
Output at idle = 125 amps.
Maximum output of 250 amps is achieved at 1200 engine rpm.
For safety, we recommend installing a fused 4 gauge main charging wire
to allow maximum current flow to your battery.
Buick Rainier 5.3L (2004-2006)
CADILLAC
Escalade 5.3, 6.0 liter engines (2002-2004)
CHEVROLET
Avalanche 5.3, 8.1 liter engines (2002-2004)
Astro Van 4.3 liter V6 engine (1996-2002)
S-10 Blazer 4.3 liter V6 engine (1996-1997)
REPLACES PART NUMBERS:
Delco 10464443, 10480390
Unit Type: Delco,
Alternator Family: Delco AD244
Voltage: 12 Volts
Amps: 250 Amps
Regulator Position: 12:00
Polarity: Negative
Output Stud Dimensions: M6-1.0
New or Remanufactured: New
Approximate Weight: 15.6 lbs / 7.09 kg
Notes:
IR/IF, (2) 10.0mm ID Unthreaded Mounting Holes
