Rareelectrical
1107523

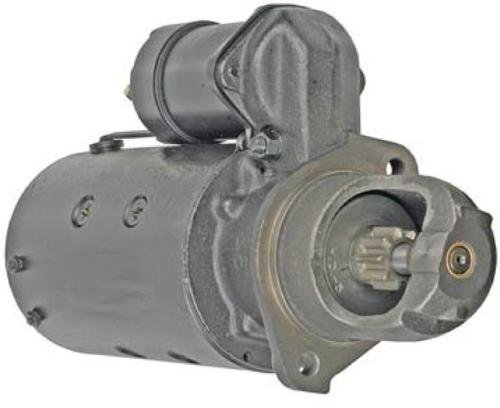

NEW 12V 9T CW STARTER 60-62 JOHN DEERE 1010 2010 TRACTOR DIESEL 1107523 1107556
Starters
100% NEW and Made with the Highest Quality Components Available
Full One Year Warranty
Computer tested for consistent Quality and unsurpassed reliability
Ships within 24 Hours M-F
Meets or Exceeds Original Specifications
APPLICATIONS:
JOHN DEERE Combines 45 Self Propelled HA-155 / 165 Diesel 1961
JOHN DEERE Combines 45 Self Propelled HA-165 Gas / LPG 1960-1969
JOHN DEERE Combines 55 Self Propelled HA-248 Diesel 1961
JOHN DEERE Combines 95 Self Propelled 248 Diesel 1961-1969
JOHN DEERE Power Units 165 4cyl Diesel 1960-1966
JOHN DEERE Tractors - Utility 1010 145 Diesel 1960-1962
JOHN DEERE Tractors - Utility 2010 165 Diesel 1960-1962
REPLACES PART NUMBERS:
Delco 1107523, 1107556, 1107571, 1108672
John Deere AP22652, AT12458, AT15334, AT16209, TY1457, TY6695
Unit Type Delco, John Deere
Type DD
Voltage 12 Volts
Rotation CW
Teeth/Splines 9 Teeth/Splines
Pinion/Splines OD 29.4mm / 1.157in
DE Housing Number 1957502
Mounting Hole 1 11.0mm ID Unthreaded
Mounting Hole 2 11.0mm ID Unthreaded
New or Remanufactured New
Approximate Weight 30.4 lbs / 13.82 kg
