Griffin Radiator

1-25202-HT

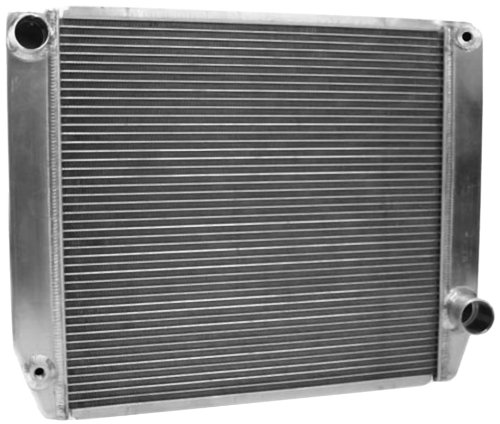

Griffin Radiator 1-25202-HT ClassicCool 24 x 19 2-Row Aluminum Race Radiator with 1 Tube

EAN: 0766897301490

UPC: 842363000590

Radiators

Features transmission cooler
Top left bottom right
2 Rows of 1 inch tube
Features cross flow

Griffin Silver 24 Inch Wide x 19 Inch Thick Universal Fit Aluminum Radiator features Griffin radiators that are engineered to cool some of the fastest race cars on the planet and are now available in several sizes to give your vehicle the same cooling power as the pros. It is constructed of all aluminum, stamped headers, stamped tanks, vacuum brazed core, and features Griffin's induction welded tubing for pure performance. It has a two year warranty. It is made in the United States of America. The features include: performance grade dual core, billet filler neck with high capacity over flow tube, hand fabricated tanks, O.E.M. style stamped tanks, direct fit applications, provisions for flange, cradle, pin and foot mounting, OEM size inlets and outlets. It is 100 percent pressure tested and has a vacuum brazed core. Optional fans available. An optional hand formed aluminum fan shroud is available. Optional polishing is available. Part 1-25202-HT, tube size: 1 inches, overall height (includes filler neck): 18.81 inches, overall width (excludes mounting brackets): 24 inches, overall thickness: please call, core height: 18.81 inches, core width: 19 inches, core thickness: 3 inches, inlet size: 1.5 inches, inlet location: top left, outlet size: 1.75 inches, outlet location: bottom right, finish: natural, transmission cooler: yes, engine oil cooler: no, provision for fan shroud: please call, MAX horsepower rating: 400, 600 HP max with electric fans. It is a direct fit for: 24 inches x 19 inches Universal Race Radiator. Additional: no Filler Neck.
