5811001282

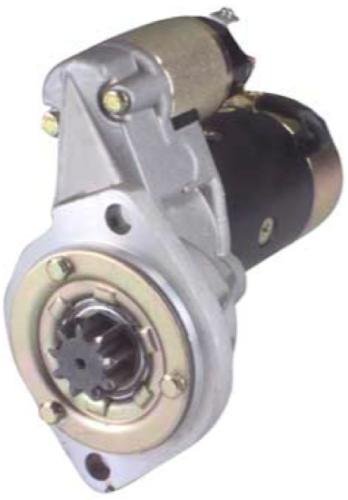

NEW 24V 9T CW OSGR STARTER ISUZU 4BC1 4BC2 4BA1 INDUSTRIAL ENGINE S24-03A S2403B

Starters

100% NEW and Made with the Highest Quality Components Available
Full One Year Warranty
Computer tested for consistent Quality and unsurpassed reliability
Ships within 24 Hours M-F
Meets or Exceeds Original Specifications

APPLICATIONS:

ISUZU COMMERCIAL KT    01/1980    01/1985
ISUZU COMMERCIAL NKR 3.3 d    07/1985    -
ISUZU COMMERCIAL NKR 3.6 d    06/1987    -
ISUZU COMMERCIAL NPR 3.3 d    11/1987    01/1990
ISUZU COMMERCIAL NPR 3.3 d    10/1984    11/1987
ISUZU COMMERCIAL NPR 3.6 d    06/1987    01/1990
ISUZU COMMERCIAL NPR 3.9 d    11/1987    01/1990
ISUZU COMMERCIAL NPR 3.9 d    10/1984    11/1987
ISUZU COMMERCIAL TLD 2.8 d    01/1983    07/1985

ISUZU Engines - Industrial Misc. Industrial Equipment 4BC1 Engine 1985
ISUZU Engines - Industrial Misc. Industrial Equipment 4BC2 Engine 1985
ISUZU Engines - Industrial Misc. Industrial Equipment 4BA1 Engine 1982-1989

REPLACES PART NUMBERS:

HITACHI S24-03A, S24-03B, S24-03C, S24-13,     S25-120, S25-120A
HITACHI SALES S24-03C
ISUZU 8942549221, 8943205310, 8943334380,     5811001280, 5811001281, 5811001282

OEM(s):    Hitachi, Isuzu
Type:    OSGR
Voltage:    24 Volts
kW:    3.2 kW
Rotation:    CW
Teeth/Splines:    9 Teeth/Splines
Pinion/Splines OD:    35.7mm / 1.406in
Mounting Hole 1:    13.2mm ID Unthreaded
Mounting Hole 2:    13.2mm ID Unthreaded
New or Remanufactured:    New
Approximate Weight:    13.88 lbs / 6.31 kg
