Rareelectrical
MCL6509

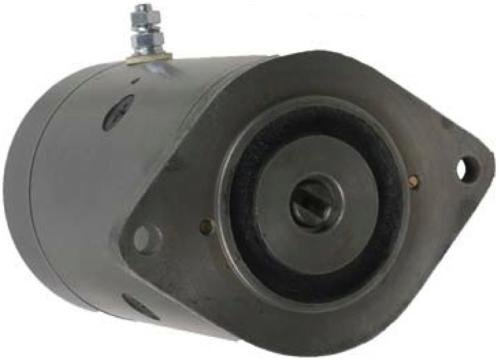

ELECTRIC PUMP MOTOR HALE PRIMER 12V CW 46-3663 MCL6509 2000041000 W-6542 W6542
Starters
100% NEW and Made with the Highest Quality Components Available
Full One Year Warranty
Computer tested for consistent Quality and unsurpassed reliability
Ships within 24 Hours M-F
Meets or Exceeds Original Specifications
Applications:
*** DOUBLE BALL BEARING
RECESSED SLOT SHAFT
RAISED RING DIAMETER ON DE IS 3.25"
STEEL SWITCH ***
HALE PRIMER PUMPS 1991 - 2000
Replaces Part Numbers:
PRESTOLITE 46-3663, MCL6509, MCL6509S, MCL-6509, MCL-6509S
REFERENCE NUMBER 2000041000
WESTERN MOTOR W-6542, W6542
Unit Type:Prestolite
Voltage: 12
Rotation: CW
Field Hsg OD: 113mm / 4.449in
Overall Length: 195mm / 7.677in
Shaft OD: 15.8mm / 0.622in
Shaft Notes: 6.2mm Slot
Terminal 1 Size: 5/16-18
Terminal 2 Size: 5/16-18
New or Remanufactured: New
Approximate Weight: 17.64 lbs / 8.02 kg
