Kunz Engineering

KNZ543

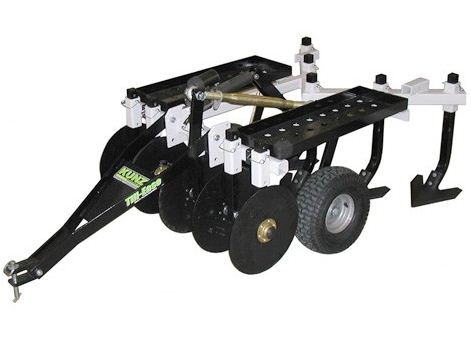

Till-Ease Chisel Plow/Field Cultivator by Kunz Engineering. Electric Lift. KNZ543

Plows

: The Model 543 uses rigid shanks that make for effortless penetration in hard ground conditions. The rigid shank also maintains a constant attack angle which helps to efficiently shatter the ground and lower the pulling load requirement
This unit uses several common style sweeps for different applications
It is equipped with five cutting coulters that are a 13.5" plain straight style
The Model 543 comes standard with an electric lift and operator controls
This is equipped with two attachment receivers located on the rear of the frame

The Till-Ease Chisel Plow/Field Cultivator by Kunz uses rigid shanks that make for effortless penetration in hard ground conditions. The rigid shank also maintains a constant attack angle which helps to efficiently shatter the ground and lower the pulling load requirement. Specifications and Options: Tillage Tool Type: Chisel Plow/Field Cultivator. Electric Lift: Yes (Includes Full Operator Controls). Number of Coulter Cutters: 5. Number of Shanks: 5. Shank Type: Rigid (1.375" Square). Adjustable and Quick-Remove Shafts: Yes. Maximum Depth: 6.0". Cultivator Sweep Size: 9.0" Wide, Agricultural Quality (1.75" Bold Spacing/0.375" Bolt Diameter). Reversible Point Chisel Sweep Size: 2.0" Wide, Agricultural Quality (1.75" Bold Spacing/0.375" Bolt Diameter). Cutting Width: 43.0". Tongue Adjustment Method: Top Link Connected to Lift Mechanism. Tongue Hitch Method: Quick Remove Pin. Weight Racks: Yes. Pneumatic Tire: Yes (15/600x6, 4-ply turf). Weight: 330 lbs. Warranty: 1 Year, Non-Commercial. Shanks: The Model 543 uses rigid shanks that make for effortless penetration in hard ground conditions. Sweeps: This unit uses several common style sweeps for different applications. The 9.0" field cultivator sweeps are used for softer ground conditions or secondary tillage. Coulters: It is equipped with five cutting coulters that are a 13.5" plain straight style. Electric Screw Actuator: The Model 543 comes standard with an electric lift and operator controls. The electric lift makes for very easy depth changes on the go and full raising for transport. Weight Racks: The unit comes standard with two weight racks. In many cases 150-300 lbs. can make a big difference. If the coulters are removed additional weight is not needed. Shank Receivers: The Model 543 has shank receivers on both the front and back for quick shank adjustments and easy shank removal. Attachment Receivers: This is equipped with two attachment receivers located on the rear of the frame.
