XPROG-M Programmer xprogm x-prog-m V5.0 Latest Version Eeprom Motorola Read & Write

Code Readers & Scan Tools

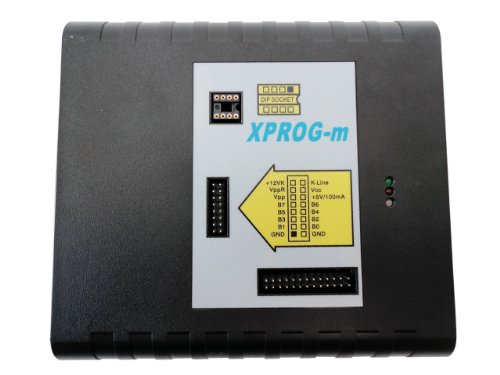

XPROG-M Programmer V5.0 is designed to replace earlier versions of the XPROG programmer. The XPROG- supports on board programming of: Motorola 68HC05 , 68HC08, 68HC11, 68HC(S)12 family MCU's, Texas Instruments TMS370/TMS374 family MCU's and serial EEPROM's . All supported devices are divided into "Software authorization" licenses. You can obtain authorization license only for these devices you are interested in.
Whats included? XPROG- M v5.0 Main Unit USB cable Software CD TMS374 on board-pro adapter TMS374/UPD78 ICP-PRO adapter TMS370-pro adapter/PLCC-28 HC05BX Cpro adapeter/PLCC52 TMS370 Cpro adapter/PLCC28 PLCC68 HC11E9/EA9 Cpro adapter/PLCC52 TMS370-pro adapter PLCC68 MC68HC05U12 Cpro adapter HC05BX-pro adapter QFP64 M35080 ICP adapter EWS3 Adapter BQ1004069B EEPROM Adapter HC12 BDM Adapter 5pcs helpful boards
Software Authorization Licenses Motorola HC05 MCU's family authorization. Motorola HC08 MCU's family authorization. Motorola HC11 MCU's family authorization. Motorola HC(S)12 MCU's family authorization. Motorola HC05B/X family "Expert Option" authorization (bypass the security bit for reading). SGS-Thomson M35080 EEPROM "Expert option" authorization (can erase full device) Texas Instruments TMS370 MCU's family authorization. Now supports TMS374 MCU !!! BMW EWS3 module programming via diagnostic line authorization . Functional features : Fully compatible with all software versions of " Device Programmer Desktop" Software update (ATMEGA) - directly from "Device Programmer Desktop" Software version control mechanism Self check for error handling High speed RS232 communication interface, fully compatible with USB to RS232 adapter Fully upward-compatible XPROG connector Multi functional XPROG-m connector 8 pin DIP socket for on- board programming Supports many PLCC, QFP, LQFP adapters for on- board programming High speed hardware engine (PLD) Two PWM regulated and ADC controlled voltage regulators
Hardware Specs: Include high output current MPU. External output for on-board device programming. Serial port interface (up to 115K baud) works on (COM1, COM 2, COM3 or COM4). Electrical Requirements : Operating Voltage : 15V DC. The external power supply unit is needed Power Consumption : 300 mA. Computer Requirements: Processor: INTEL Pentium 60MHz or faster (depends on operating system) Memory: (RAM) 32MB (depends on operating system) Hard drive: 5MB free space Communication: One free physical COM-port (or USB to RS232/COM adapter) Operating system: Microsoft Windows 95/ 98(recommended)/ NT/ ME/ 2000/ XP
Devices Supported: Serial Eprom: 24Cxx, 25Cxx, 93Cxx, MDA2062, NVM3060, M6M800xx, S2100, S24Hxx, TC89xxx, X2444, M35080 TEXAS INSTRUMENTS TMS370 Series: TMS370C002A, TMS370C010A, TMS370C012A, TMS370C020A, TMS370C022A, TMS370C032A, TMS370C036A, TMS370C040A, TMS370C042A, TMS370C050A, TMS370C052A, TMS370C056A, TMS370C058A, TMS370C256A TEXAS INSTRUMENTS TMS374 Series: TMS374C003APQQ, TMS374CD13APQQ MOTOROLA MC68HC05 Series: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC05B32, MC68HC05X32(0D53J), MC68HC05X32(0D69J), MC68HC05X32(1H52A), MC68HC05X32(1D69J), MC68HC705X32(2D59J), MC68HC705B16, MC68HC705B16N, MC68HC705B32, MC68HC05L28, MC68HC05E6(0F82B), MC68HC05E6(0G72G), MC68HC05H12(0H57A), MC68HC05P3(1E25B) MOTOROLA MC68HC08 Series: MC68HC08AS32(1J27F), MC68HC08AZ32, MC68HC08AZ32(0J66D), MC68HC08AS60, MC68HC08AS60(8H62A), MC68HC08AZ60, MC68HC08AZ60(2J74Y), MC68HC08AZ60A MOTOROLA MC68HC11 Series : MC68HC11A8(old), MC68HC11A8(new), MC68HC11E1, MC68HC11E9, MC68HC11EA9, MC68HC11EA9(0D46J), MC68HC11EA9(1D47J), MC68HC11EA9(2D47J), MC68HC11F1(2F37E), MC68HC11F1(E87J), MC68HC11K4, MC68HC11K4(1E62H), MC68HC11K4(3E74J), MC68HC11KS2(1E59B), MC68HC11KA4, MC68HC11KA4(0E57S), MC68HC11KW1, MC68HC11L6, MC68HC11P2(3E74J), MC68HC11P2(1E53M), MC68HC11P2(0G10V), MC68HC11PA8, MC68HC11PH8, MC68HC11PH8(3D64J), MC68HC11PH8(0H30R) MOTOROLA MC68HC(S)12 Series: XC68HC12B32(9H91F), MC68HC12B32(1H91F), MC68HC12B32(3H91F), MC68HC12BE32(2H54T), MC68HC12BE32(0J38M), MC68HC12D60(0K75F), MC68HC12D60(1F68K), MC68HC12D60(1L28M), MC68HC912DG128(5H55W), MC9S12D64(2L86D), MC9S12DG256(2K79X) Eeprom read and write Motorola HC05 family authorization (allows to read/write EEPROM) Motorola HC08 family authorization (allows to read/write EEPROM) Motorola HC11 family authorization (allows to read/write EEPROM) Motorola HC(S)12 family authorization (allows to read/write EEPROM and flash memory) Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM) Motorola HC05B/X family bypass security

Devices Supported: Serial Eprom: 24Cxx, 25Cxx, 93Cxx, MDA2062, NVM3060, M6M800xx, S2100, S24Hxx, TC89xxx, X2444, M35080 TEXAS INSTRUMENTS TMS370 Series: TMS370C002A, TMS370C010A, TMS370C012A, TMS370C020A, TMS370C022A, TMS370C032A, TMS370C036A, TMS370C040A, TMS370C042A, TMS370C050A, TMS370C052A, TMS370C056A, TMS370C058A, TMS370C256A TEXAS INSTRUMENTS TMS374 Series: TMS374C003APQQ, TMS374CD13APQQ MOTOROLA MC68HC05 Series: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC05B32, MC68HC05X32(0D53J), MC68HC05X32(0D69J), MC68HC05X32(1H52A), MC68HC05X32(1D69J), MC68HC705X32(2D59J), MC68HC705B16, MC68HC705B16N, MC68HC705B32, MC68HC05L28, MC68HC05E6(0F82B), MC68HC05E6(0G72G), MC68HC05H12(0H57A), MC68HC05P3(1E25B) MOTOROLA MC68HC08 Series: MC68HC08AS32(1J27F), MC68HC08AZ32, MC68HC08AZ32(0J66D), MC68HC08AS60, MC68HC08AS60(8H62A), MC68HC08AZ60, MC68HC08AZ60(2J74Y), MC68HC08AZ60A MOTOROLA MC68HC11 Series : MC68HC11A8(old), MC68HC11A8(new), MC68HC11E1, MC68HC11E9, MC68HC11EA9, MC68HC11EA9(0D46J), MC68HC11EA9(1D47J), MC68HC11EA9(2D47J), MC68HC11F1(2F37E), MC68HC11F1(E87J), MC68HC11K4, MC68HC11K4(1E62H), MC68HC11K4(3E74J), MC68HC11KS2(1E59B), MC68HC11KA4, MC68HC11KA4(0E57S), MC68HC11KW1, MC68HC11L6, MC68HC11P2(3E74J), MC68HC11P2(1E53M), MC68HC11P2(0G10V), MC68HC11PA8, MC68HC11PH8, MC68HC11PH8(3D64J), MC68HC11PH8(0H30R) MOTOROLA MC68HC(S)12 Series: XC68HC12B32(9H91F), MC68HC12B32(1H91F), MC68HC12B32(3H91F), MC68HC12BE32(2H54T), MC68HC12BE32(0J38M), MC68HC12D60(0K75F), MC68HC12D60(1F68K), MC68HC12D60(1L28M), MC68HC912DG128(5H55W), MC9S12D64(2L86D), MC9S12DG256(2K79X)
