Xantrex

815-3012

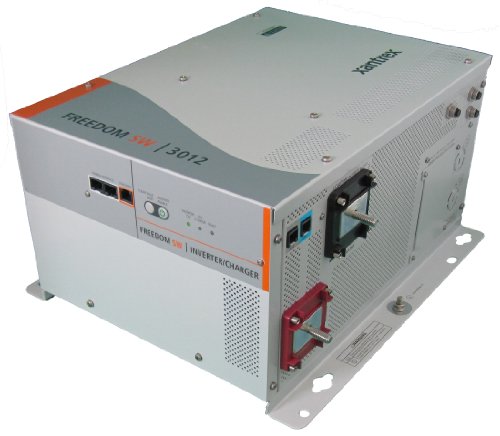

Xantrex 815-3012 Freedom SW Series 3000 Watt Inverter/Charger

EAN: 0031113268841

UPC: 088021154872

Uninterruptible Power Supply (UPS)

3000 Watt sine wave output
120V, 60Hz output
80 Amp peak output current
10-16 DC input
150 Amp charger

Xantrex Freedom SW Inverter/Charger, Powerful, Configurable, Versatile. The Freedom SW series represents highly sophisticated and advanced inverter/chargers. Also features improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements. Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output. Application: Designed for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment. PRODUCT FEATURES: Pure sine wave output to operate sensitive electronics. Advanced configuration options for customized applications. Built-in transfer switch. Automatically transfers between inverter power and incoming AC power. Power factor corrected multi-stage charger for fast, efficient charging. Temperature compensated charging for most climate conditions. Ignition lockout feature helps to minimize unnecessary battery drain when used with Freedom System Control Panel (not included). Conformal coated circuit boards for humid environments. Dual input / Dual output AC interface for 3000 W model only. Ability to charge batteries drained to extremely low voltage. PROTECTION FEATURES: Battery over-voltage and under-voltage protection. Over-temperature shutdown. Automatic overload protection. Short-circuit protection. Integrated, resettable AC breakers. with continuous AC power of 3000 W, Surge 6000W, and 120 VAC charger. Dimensions: 15.25 L x 13.5 W x 7.75 H. AC Connection, Input: Split, Dual; Output: Dual, Dual C.
