Titan Trailer Components

ST-TD4423400

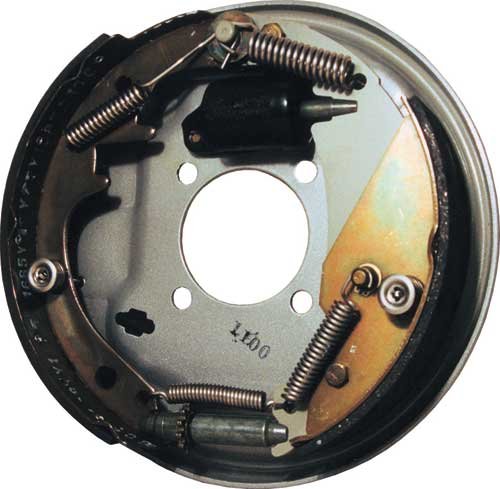

Titan Galphorite Premier Free-Backing Hydraulic Trailer Brake Assembly 10 Right Hand

ABS

Designed for use with hydraulic brake actuators that do not include reverse lockouts. Fits most 13", 14" and 15" wheels. Galphorite plating delivers superior corrosion protection Backing plate and shoe levers are sealed with permanently bonded electro coat primer Second coat of rugged acrylic is applied to backing plate - nearly rustproof Wheel cylinders are treated with hot black oxide Internal components are olive drab, zinc plated Stainless steel springs Free-backing design lets you reverse without trailer brakes being activated Specifically designed for use with surge-style trailer brake actuators Hydraulic pressure is contained by wheel cylinder Specifications: Right-hand assembly (passenger's side) Dimensions: 10" x 2-1/4" Pad lining: 44 sq in Wheel size: 13", 14" or 15" Mounting flange bolt pattern: 4 on 4" Center hole diameter: 3" Axle rating: up to 3,750 lbs 1-Year Mfg. Warranty 2-Year Mfg. Corrosion Warranty
